A6 Quattro Wagon V6-3.2L (BKH) (2006)
Tail Light Bulb: Service and Repair
Back-Up Lamp, Fog Lamp and Tail Lamp Bulbs
Back-Up Lamp, Fog Lamp and Tail Lamp Bulbs
Removing
-
Switch off ignition and remove ignition key.
-
Turn light switch into "0" position.
-

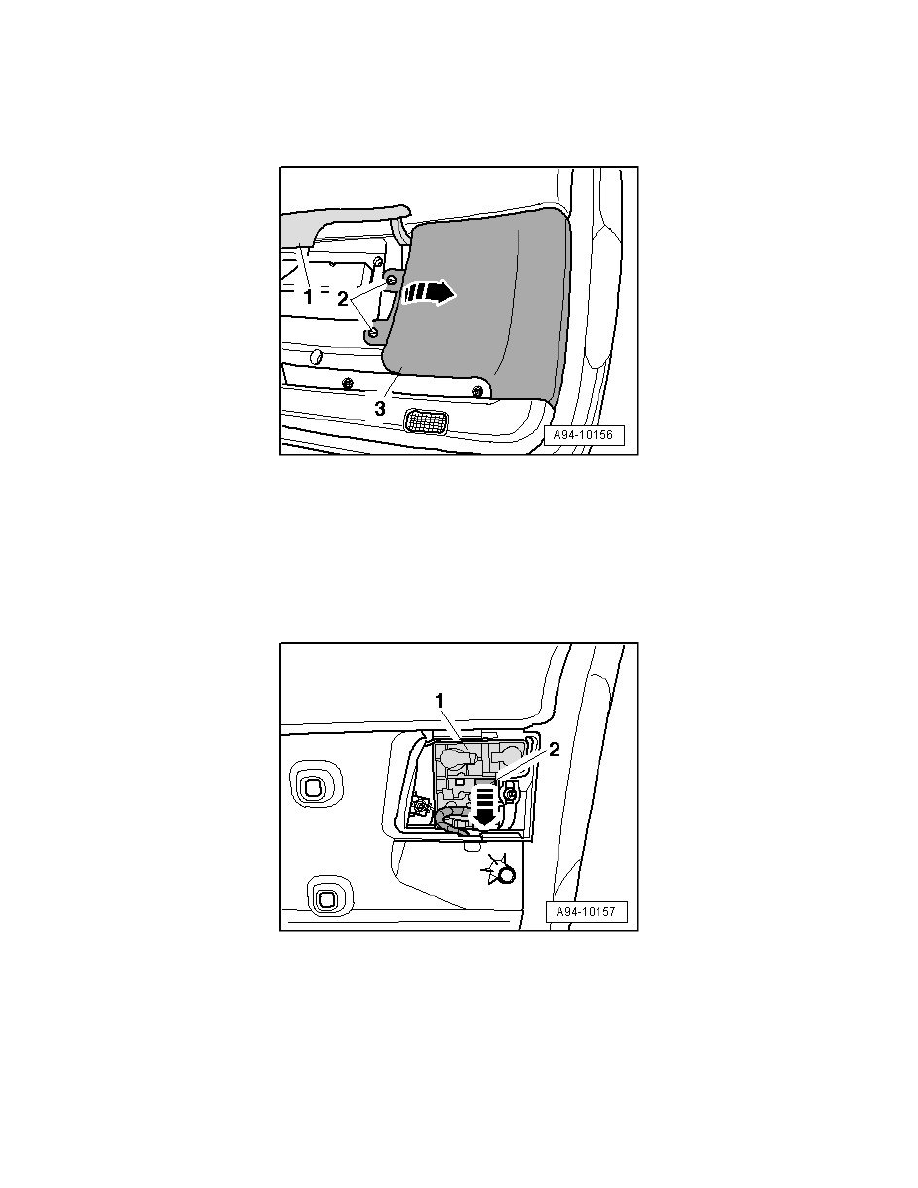

Open cap - 1 - for warning triangle.
-
Rotate quick-release screw - 2 - counter-clockwise 90° and remove cover - 3 - from luggage compartment lining - direction of arrow -.
-
Remove bulb socket - 1 - from housing, press catch bracket - 2 - downward - arrow - to do so.
Lamp, Basis version:
-
Remove the light bulb for tail light and rear fog lamp out of socket.
Lamp with LED's:
-
Remove light bulb for rear fog lamp from socket.
All:
-
Pull light bulb for back-up lamp out of socket.
