A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

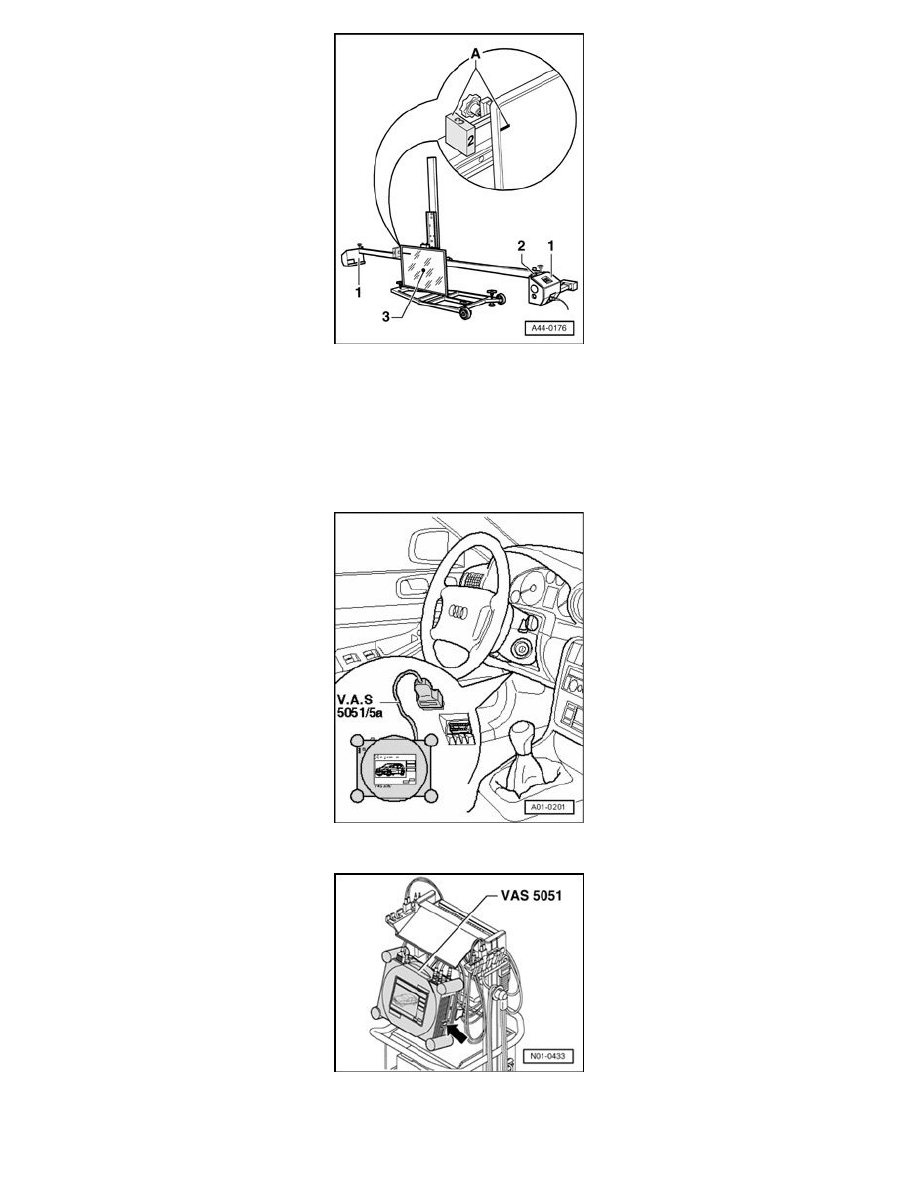

Bring spirit levels - 2 - of measurement pick-ups - 1 - into horizontal position.
-
Now check once again whether laser beam - 3 - on VAS 6190 strikes sensor lens.
Note:
^
VAS 6190 is correctly aligned if the laser beam still coincides with the sensor lens at this stage, after the identical toe values have been set.
^
If the laser beam does not strike the sensor lens, the alignment of the VAS 6190 must be repeated once more.
-
Connect diagnostic operation system VAS 5051 A.
-
Connect diagnostic cable VAS 5051/5A connector to Data Link Connector (DLC).
-
Switch on Vehicle Diagnosis, Testing and Information System - arrow -.
Diagnostic operation system is ready for operation when the button fields of the operating modes are displayed.
