A6 Quattro Wagon V6-3.2L (BKH) (2006)
Air Filter Element: Locations

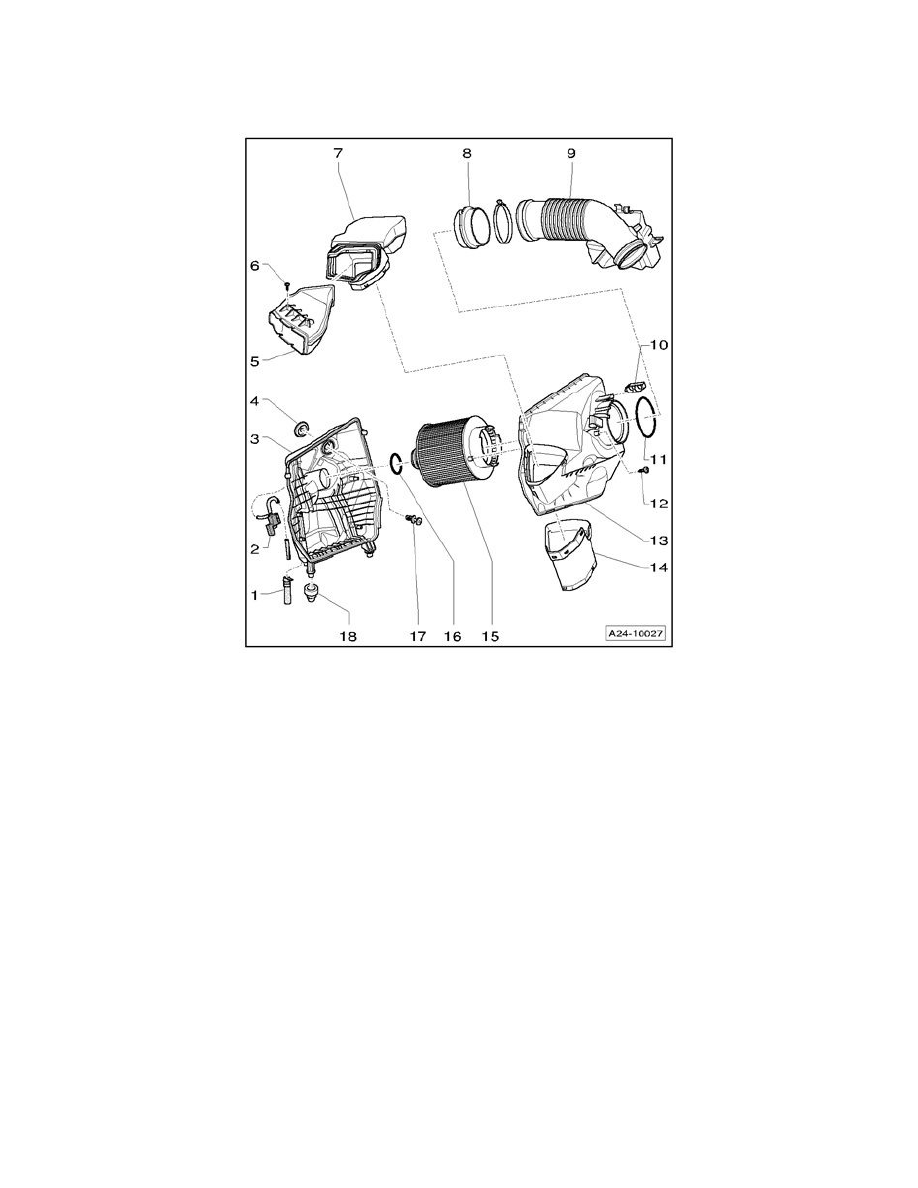

Air Filter, Assembly Overview
Air Filter, Assembly Overview
1
-
Vent hose
2
-
Air Flap Positioner V63
3
-
Lower part of air filter housing
4
-
Rubber grommet
5
-
Air duct
6
-
1.5 Nm
7
-
Air duct
-
To lock carrier
8
-
Connection
9
-
Air duct hose to Throttle Valve Control Module J338
-
with resonator
10
-
Wiring router
11
-
O-ring
-
Always replace
12
-
1.5 Nm
13
-
Upper part of air filter housing
14
-
Air duct
-
clipped into upper part of air filter housing
15
-
Air filter element
-
Maintenance intervals
16
-
O-ring
-
Always replace
17
-
Spreader clip
18
-
Grommet
