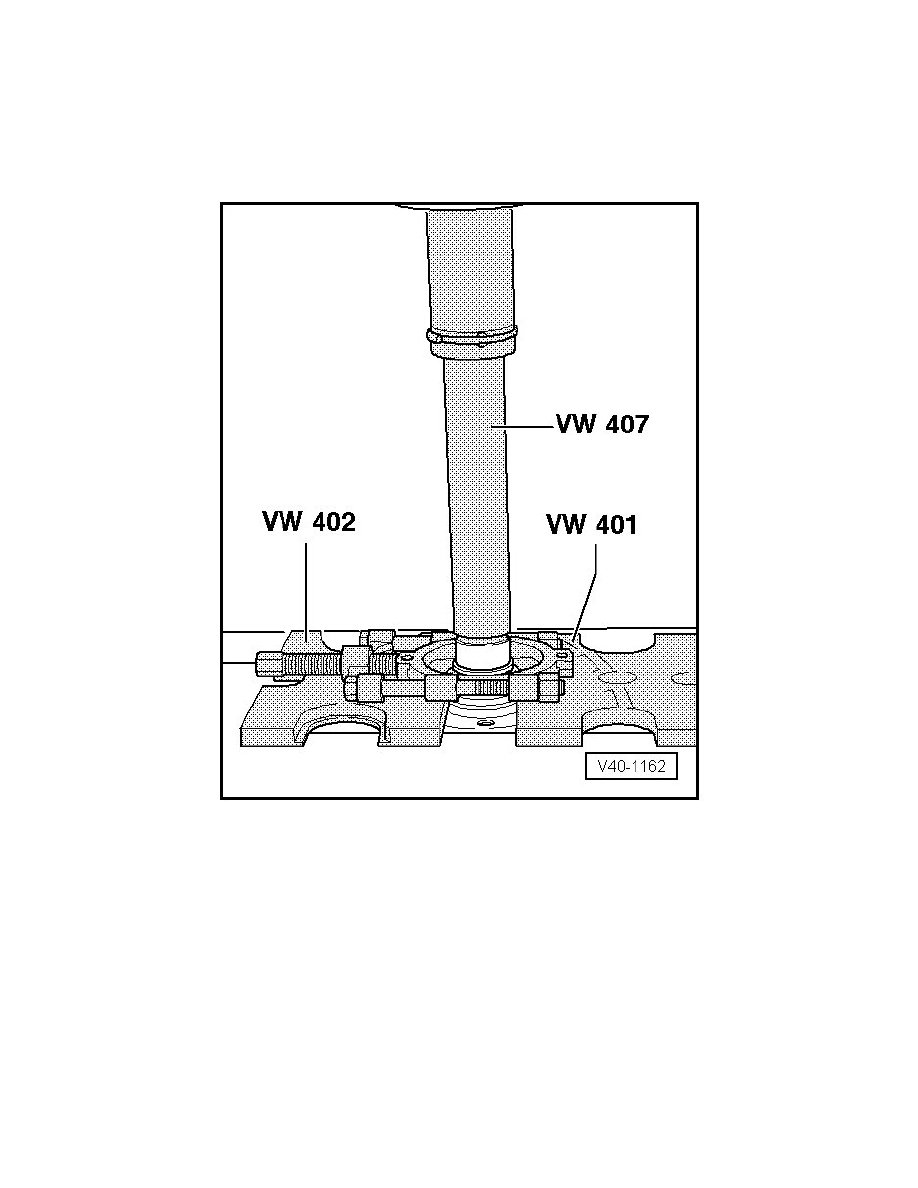

Insert the separating tool between the bearing inner race -  1 - and slide washer - 2 - and pre-tighten with the spindle.

‹› Use a commercially available separating device e.g. Kukko 17/2.

This deforms slide washer and it must be replaced.

-

Remove bearing inner race from the wheel hub.

Replacing wheel bearing slide washer
