If there is no voltage:

Checking wiring connections

If the manufacturers test box is being used, perform the following step.

-

Connect the Test Box 105 Pin (VAG1598/42) with Adapter Cable (1598/39-1) => Fuel Injection and Ignition 24 Diagnosis and Testing.

If the manufacturers test box is not being used, perform the following step.

-

Remove the Engine Control Module (ECM) (J623). Refer to=> [ Engine Control Module, Replacing ] See: Computers and Control
Systems/Engine Control Module/Service and Repair/Engine Control Module, Replacing

-

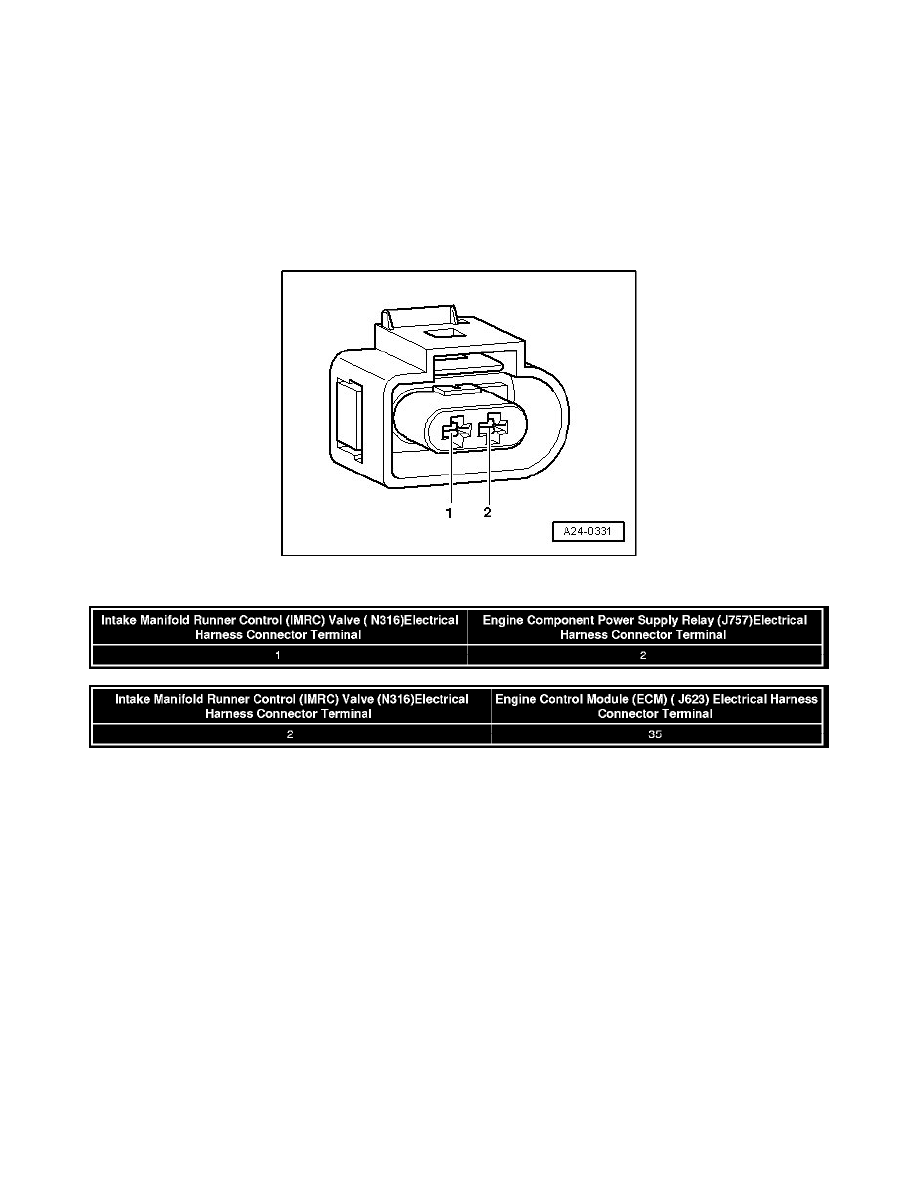

Using a Multimeter , check the following wire connection for an open circuit.

Specified value: 1.5 ohms max.

If the specification is not obtained:

-

Check the wiring for a short circuit to Battery positive (+) or an open circuit.

If specified value is not obtained:

-

If necessary, repair the wiring connection.

If no malfunctions are found in wiring:

-

Replace the Engine Control Module (ECM) (J623). Refer to=> [ Engine Control Module, Replacing ] See: Computers and Control
Systems/Engine Control Module/Service and Repair/Engine Control Module, Replacing.

-

Assembly is performed in the reverse of the removal.

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] See: Computers and Control Systems/Testing and

Inspection/Scan Tool Testing and Procedures/Diagnostic Modes 01 - 09/Diagnostic Mode 03 - Read DTC Memory.
