A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

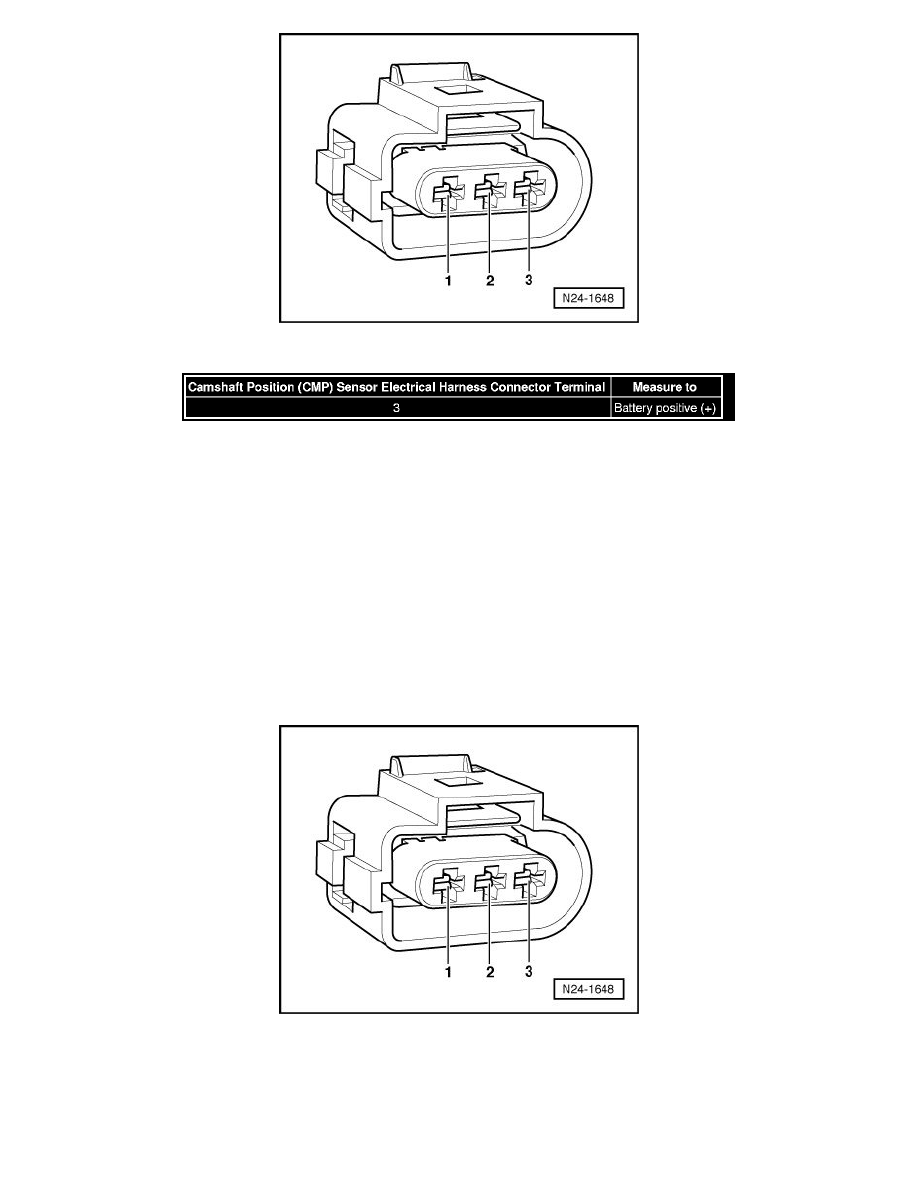

Using a Multimeter, Check the Camshaft Position (CMP) Sensor electrical harness connector terminal 3 to engine ground for voltage.
Specified value: about 10 V.
-
Switch the ignition off.
If the specification was not obtained:
Checking wiring
If the manufacturers test box is being used, perform the following step.
-
Install the test box (VAG1598/42) => Fuel Injection and Ignition 24 Diagnosis and Testing.
If the manufacturers test box is not being used, perform the following step.
-
Remove the Engine Control Module (ECM) (J623). Refer to => [ Engine Control Module, Replacing ] See: Computers and Control
Systems/Engine Control Module/Service and Repair/Engine Control Module, Replacing.
-
Using a Multimeter, Check the Camshaft Position (CMP) Sensor electrical harness connector to the Engine Control Module (ECM) (J623)
electrical harness connector for resistance.
‹› Camshaft Position (CMP) Sensor (G40) (bank 1).
