A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

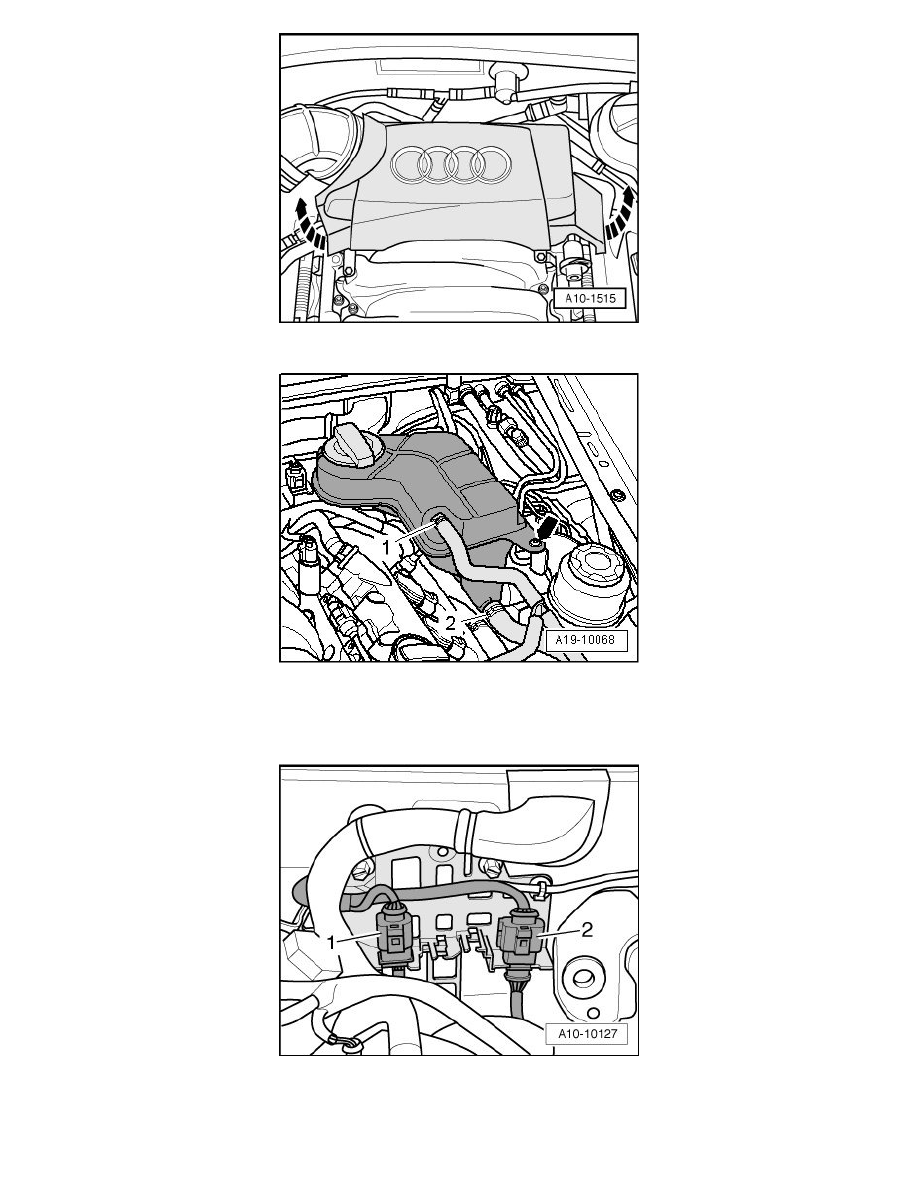

Remove coolant expansion tank - arrow -.
-
Disconnect electrical connection from Engine Coolant Level (ECL) warning switch (F66) at bottom of coolant reservoir and set aside coolant
reservoir with coolant hoses - 1 - and - 2 - connected.
-
Disconnect electrical harness connector - 2 - for Oxygen Sensor (O2S) 2 behind Three Way Catalytic Converter (TWC) (G131) and free up wire.
‹› Ignore - 1 -.
-
Remove oxygen sensor - 2 - using ring spanner set (3337).
