A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

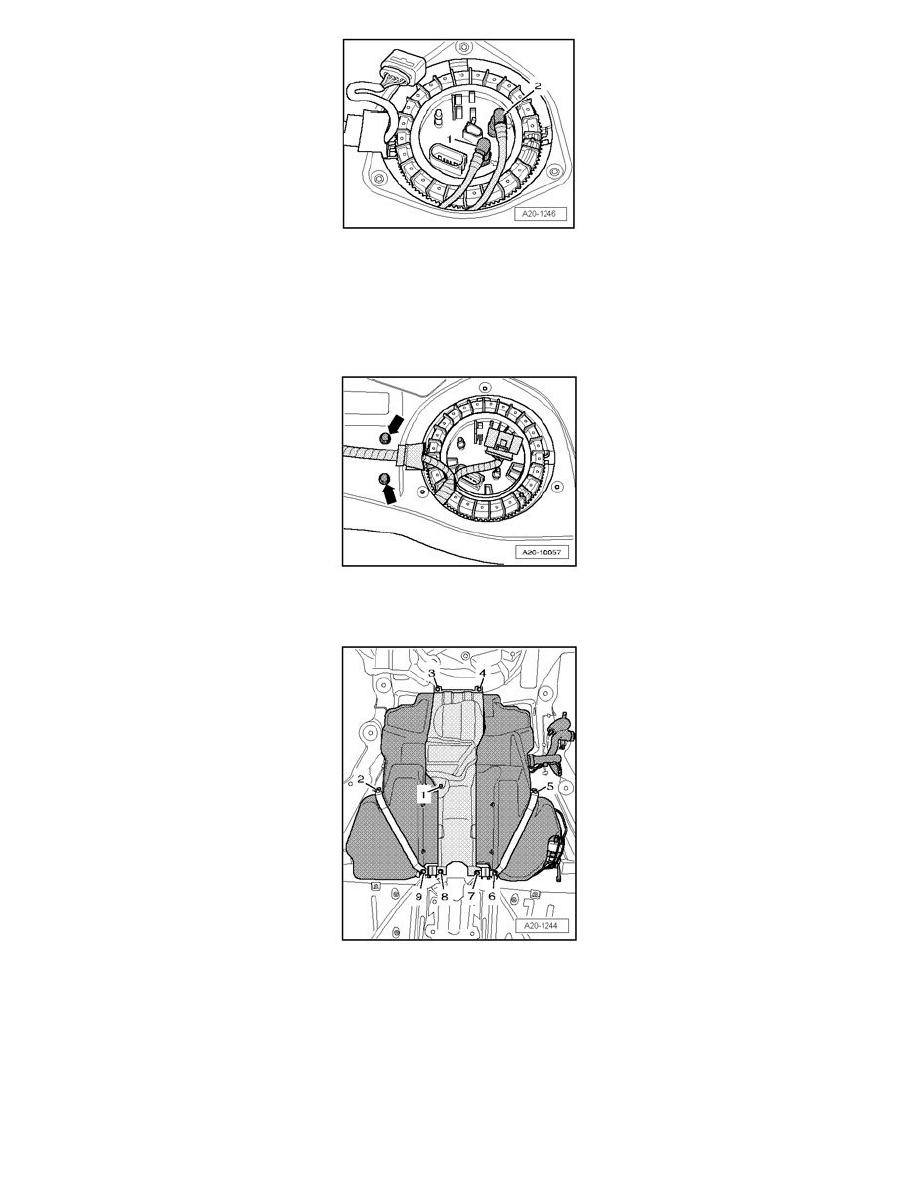

Mark the fuel supply line -1 - and fuel return line - 2 -.
CAUTION: Fuel system is under pressure: Before opening system, place clean rags around the connection. Then release pressure by
carefully loosening the connection.
-
Pull both lines from locking flange, by pressing the release buttons.
-
Remove the bolts - arrows -.
-
Remove Fuel Pump (FP) Control Module J538 with bracket.
Installing
-
Tightening torques.
Installation is performed in the reverse order of removal, noting the following:
-
Fasten mounting straps and carrier plate -1 to 9 -.
