A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

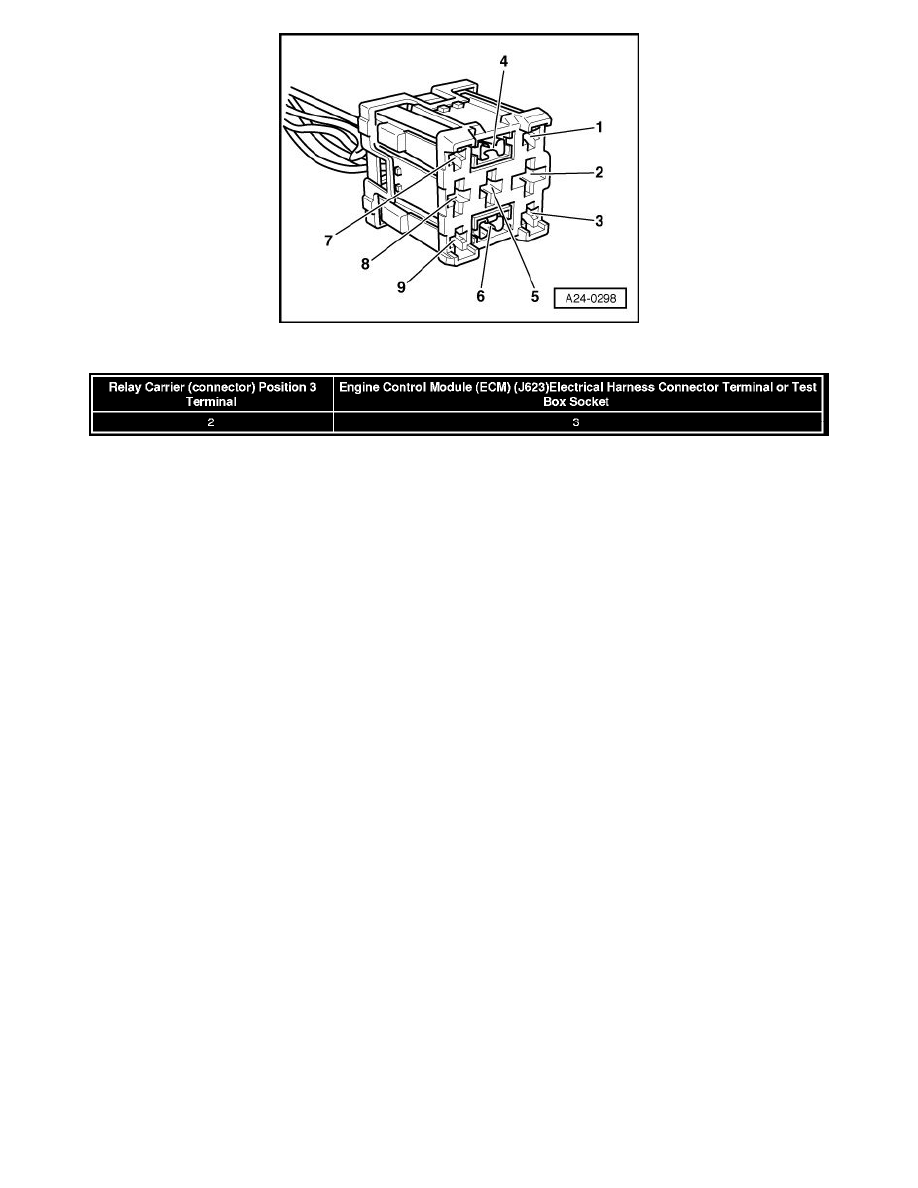

Using a Multimeter, check the following wiring connections for resistance.
Specified value: Wire resistance max 1.5 ohms
If the specification is not obtained:
-
Check the wiring for a short circuit to Battery positive (+) or an open circuit.
-
If necessary, repair the wiring connection.
If no malfunctions are detected:
-
Replace the Engine Control Module (ECM) Power Supply Relay (J363)
Assembly is performed in the reverse order of the removal.
After the repair work, the following work steps must be performed in the following sequence:
1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] See: Powertrain Management/Computers and Control
Systems/Testing and Inspection/Scan Tool Testing and Procedures/Diagnostic Modes 01 - 09/Diagnostic Mode 03 - Read DTC Memory.
2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] See: Powertrain Management/Computers and
Control Systems/Testing and Inspection/Scan Tool Testing and Procedures/Diagnostic Modes 01 - 09/Diagnostic Mode 04 - Erase DTC Memory.
3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] See: Powertrain Management/Computers and Control
Systems/Testing and Inspection/Monitors, Trips, Drive Cycles and Readiness Codes/Readiness Code.
