A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

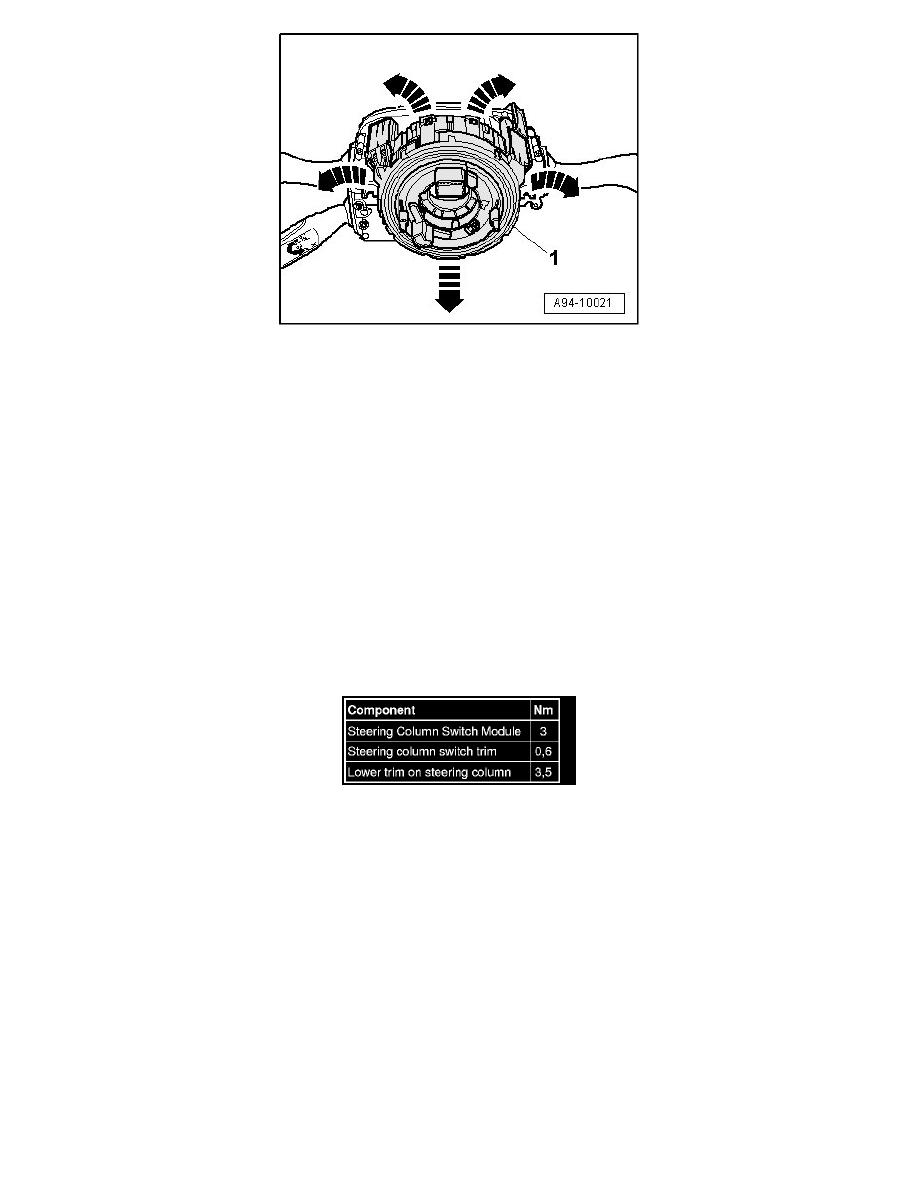

Carefully release catches - arrows - and remove return spring with slip ring - 1 - from steering column switch module (SMLS).
‹› Shown in illustration with steering column switch module (SMLS) removed.
Installing
Installation is reverse of removal, noting the following:
-
Ensure all catches and connections engage cleanly.
-
Guide upper steering column switch trim into lower trim catches, push both pieces together and screw in.
-
Install lower instrument panel trim on driver side => [ Lower Driver Side Instrument Panel Cover ] See: Body and Frame/Interior Moulding /
Trim/Utility Storage Compartment/Service and Repair/Storage Compartments and Covers.
-
Install steering wheel => [ Steering Wheel ] See: Steering Wheel
-
Install driver side airbag unit.
Tightening Specifications
