A6 Quattro Wagon V6-3.2L (BKH) (2006)
‹› If the airbag malfunction indicator lamp (K75) indicates a malfunction after assembly, check the DTC memory with the vehicle diagnosis, testing
and information system (VAS 5051B), clear it, and check it again.
4
Screws (Qty. 2)
‹› Tightening specification 8 Nm

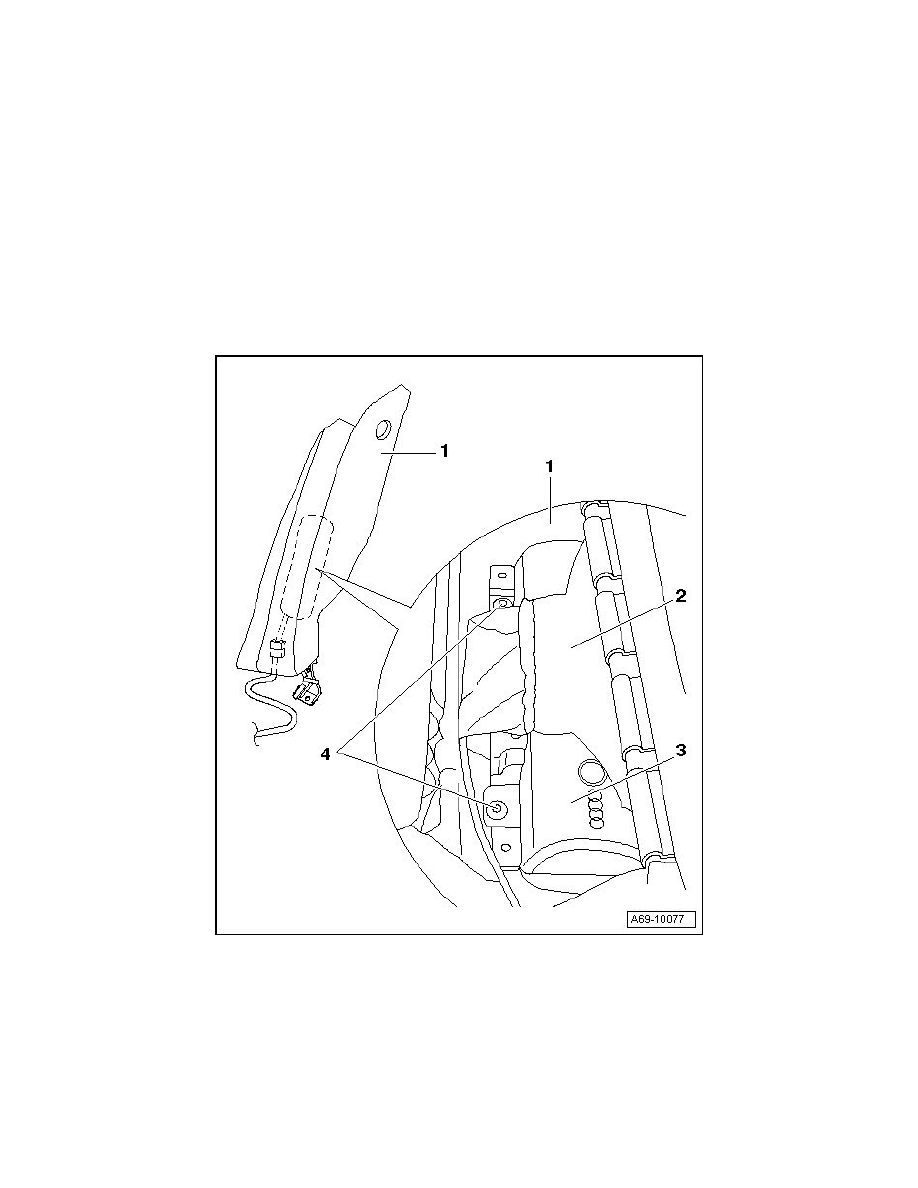

Rear Side Airbag Igniters, Folding Backrest
Special tools, testers and auxiliary items required
‹› Torque Wrench (V.A.G 1410)
‹› Vehicle Diagnosis, Testing and Information System (VAS 5051B)
CAUTION!
Observe the safety precautions for repairs on airbags.
1
Side upholstery
2
Protective cover for side airbag
3
Side airbag, driver/passenger side
‹› Removing
-
Disconnect the battery ground (GND) strap.
-
Remove seat bench => [ Bench Seat ] See: Body and Frame/Seats/Service and Repair/Removal and Replacement/Rear Seats.
