A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

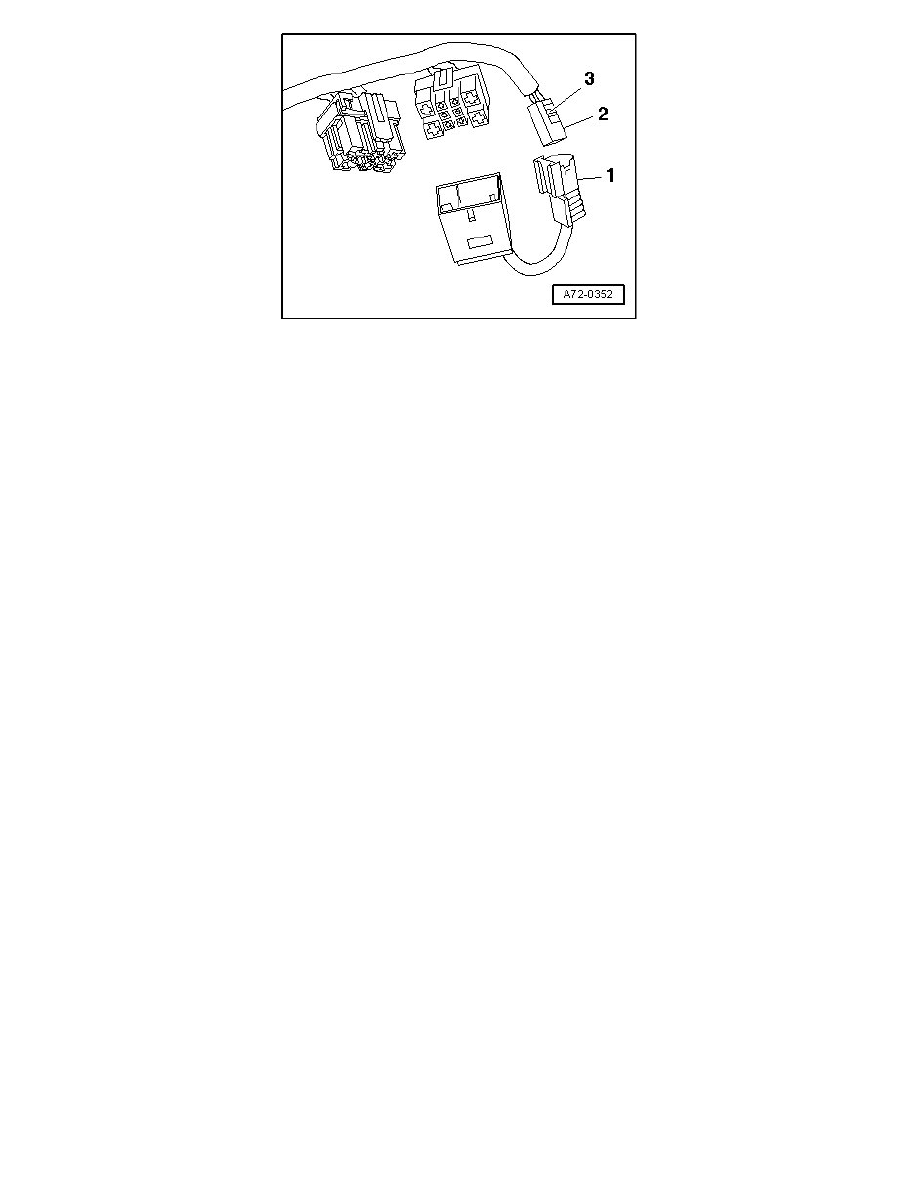

Press catch - 3 - on connector for side airbag - 2 - from counterpart - 1 - and remove it.
-
Follow measures after connecting battery.
‹› If the airbag malfunction indicator lamp (K75) indicates a malfunction after assembly, check the DTC memory with the vehicle diagnosis, testing
and information system (VAS 5051B), clear it, and check it again.
