A6 Quattro Wagon V6-3.2L (BKH) (2006)

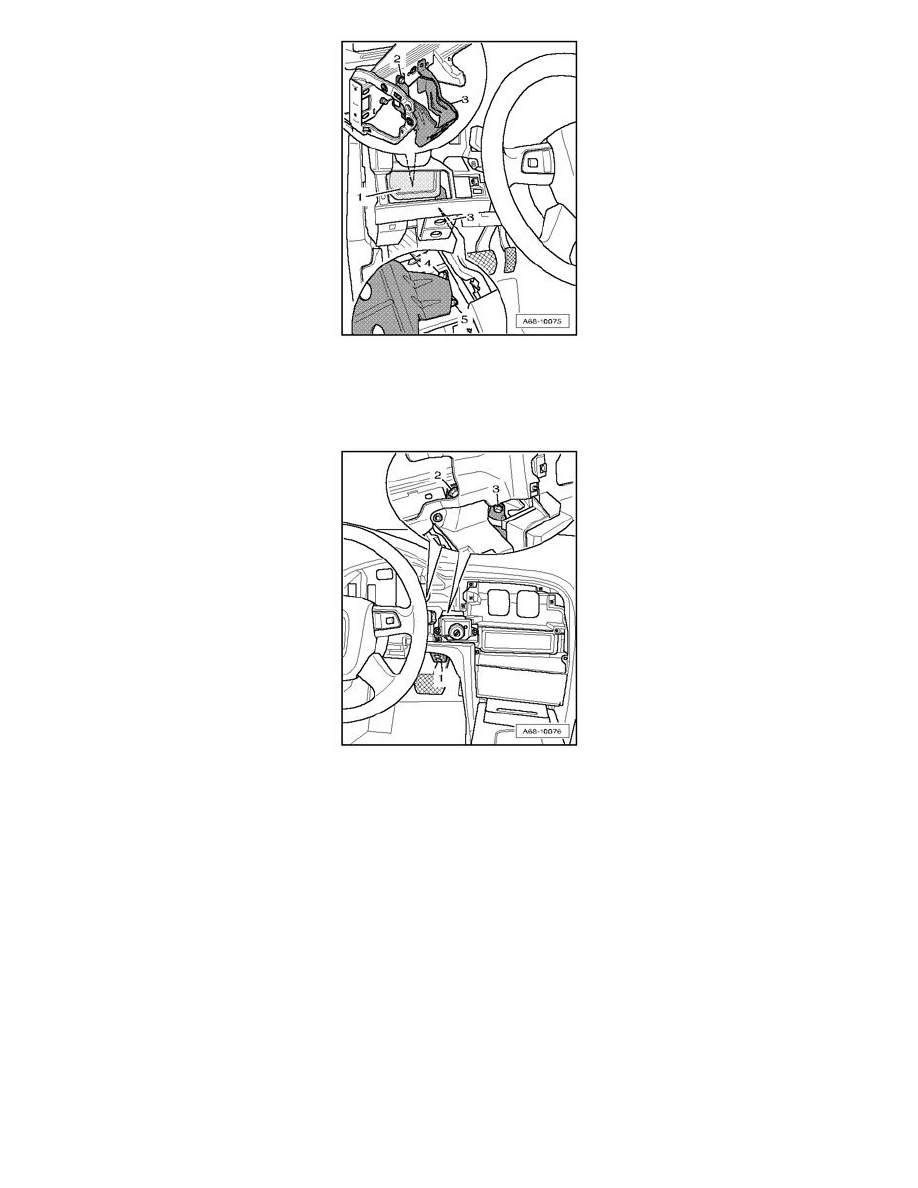

Left knee bar:
-
Remove screws - 4 - and - 5 -.
-
Remove bolt - 2 - from behind air duct - 1 -, thereby lifting instrument panel from central tube slightly, if necessary.
-
Remove left knee bar - 3 -.
Right knee bar:
-
Remove bolts - 2 - and - 3 -, thereby lifting instrument panel from central pipe slightly, if necessary.
-
Remove right knee bar - 1 -.
Installing
Installation is reverse of removal, but note the following:
-
Install instrument cluster.
-
Install lower instrument panel trim on drivers side.
Tightening torques
Component
Nm
Knee bar to central tube
9
Instrument panel to central tube
3.5
