A6 Quattro Wagon V6-3.2L (BKH) (2006)
Installing
-

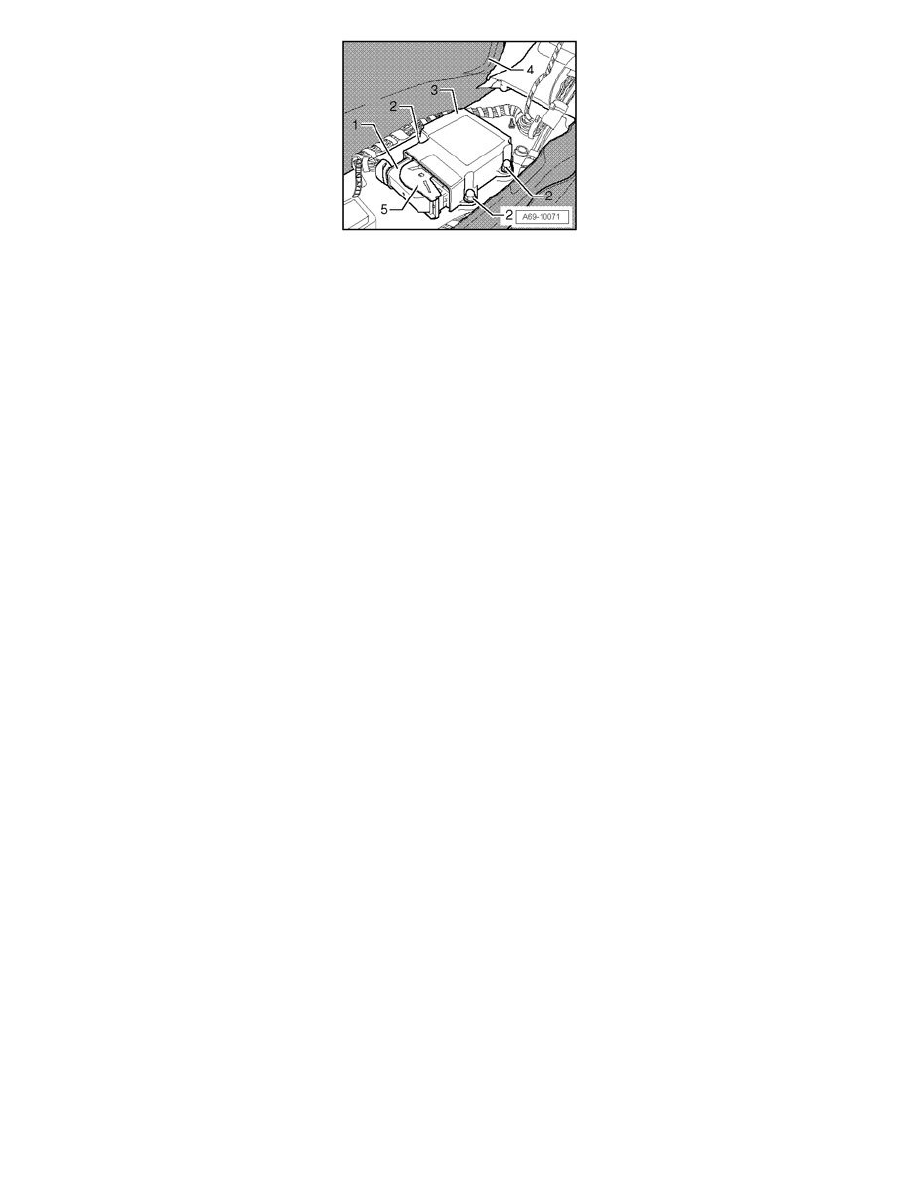

Install control module - 3 - in sequence opposite of removal.
CAUTION: No one should be in vehicle when connecting battery.
-
Connect battery ground strap.
-
Follow measures after connecting battery.
NOTE:
-
If the Airbag Malfunction Indicator Lamp (MIL) K75 shows a malfunction after assembly, DTC memory must be checked with Vehicle
Diagnostic, Testing and Information System VAS 5051 B, cleared and then rechecked.
-
After replacing control module, it must be coded.
-
Airbag Control Module J234 ground connection takes place with chassis over housing.
Tightening torque
Tightening torque
Nm
Airbag Control Module J234 on chassis
9
