A6 Quattro Wagon V6-3.2L (BKH) (2006)
Seat Belt: Service and Repair
Center Rear Belt Guide
Seat Belts
Center Rear Belt Guide
Rear center belt guide is only installed on vehicles with fixed rear seat backrest.
Special tools, testers and auxiliary items required
‹› Trim removal wedge (3409)
Removing
-
Remove the rear bench seat => [ Bench Seat ] See: Body and Frame/Seats/Service and Repair/Removal and Replacement/Rear Seats.
-
Remove rear center floor assembly anchorage point (belt buckle with right retainer).
-

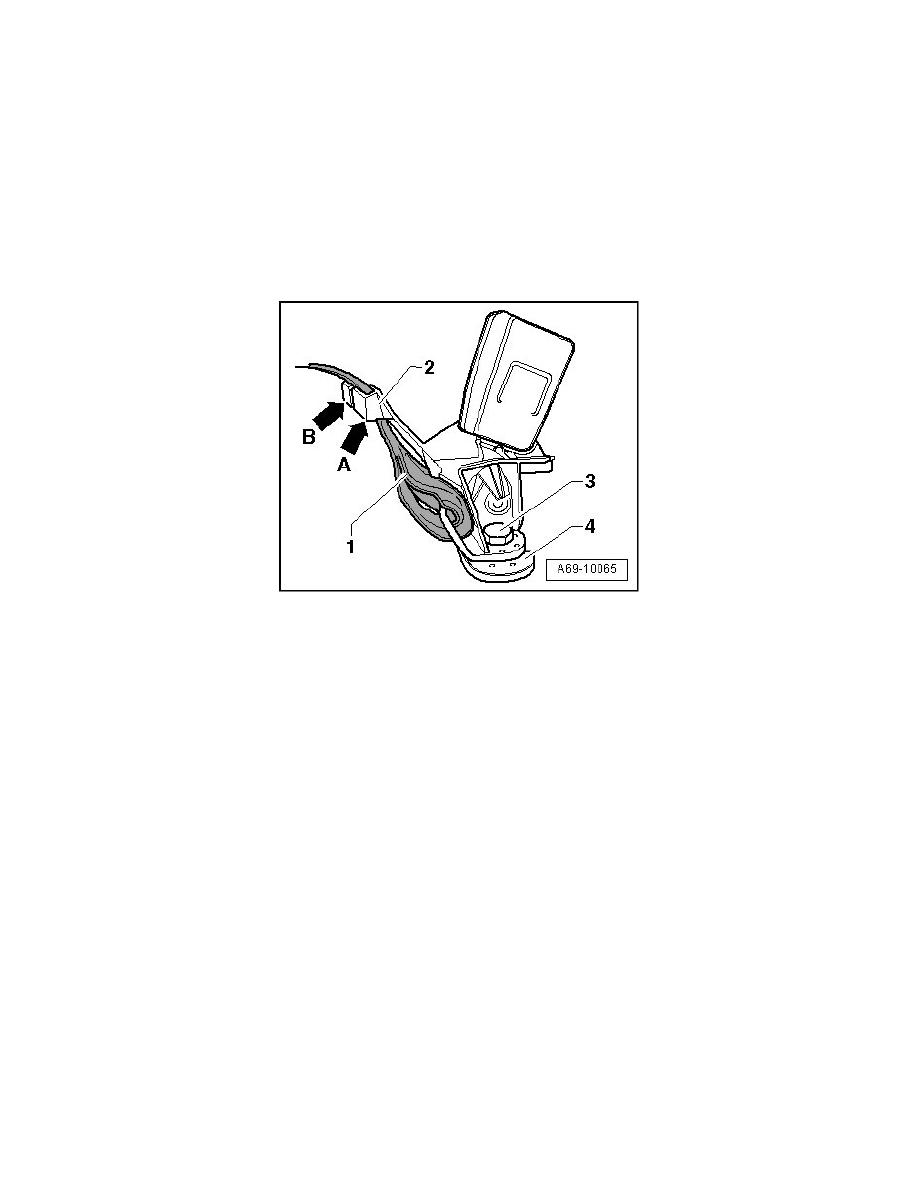

Thread belt webbing - 1 - out of guide clip - 2 - on rear center floor assembly anchorage point (belt buckle with right retainer).
-
Unclip belt guide front catches - 1 -.
