A6 Quattro Wagon V6-3.2L (BKH) (2006)
1
-
Seat belt height adjuster
-
Removal
-

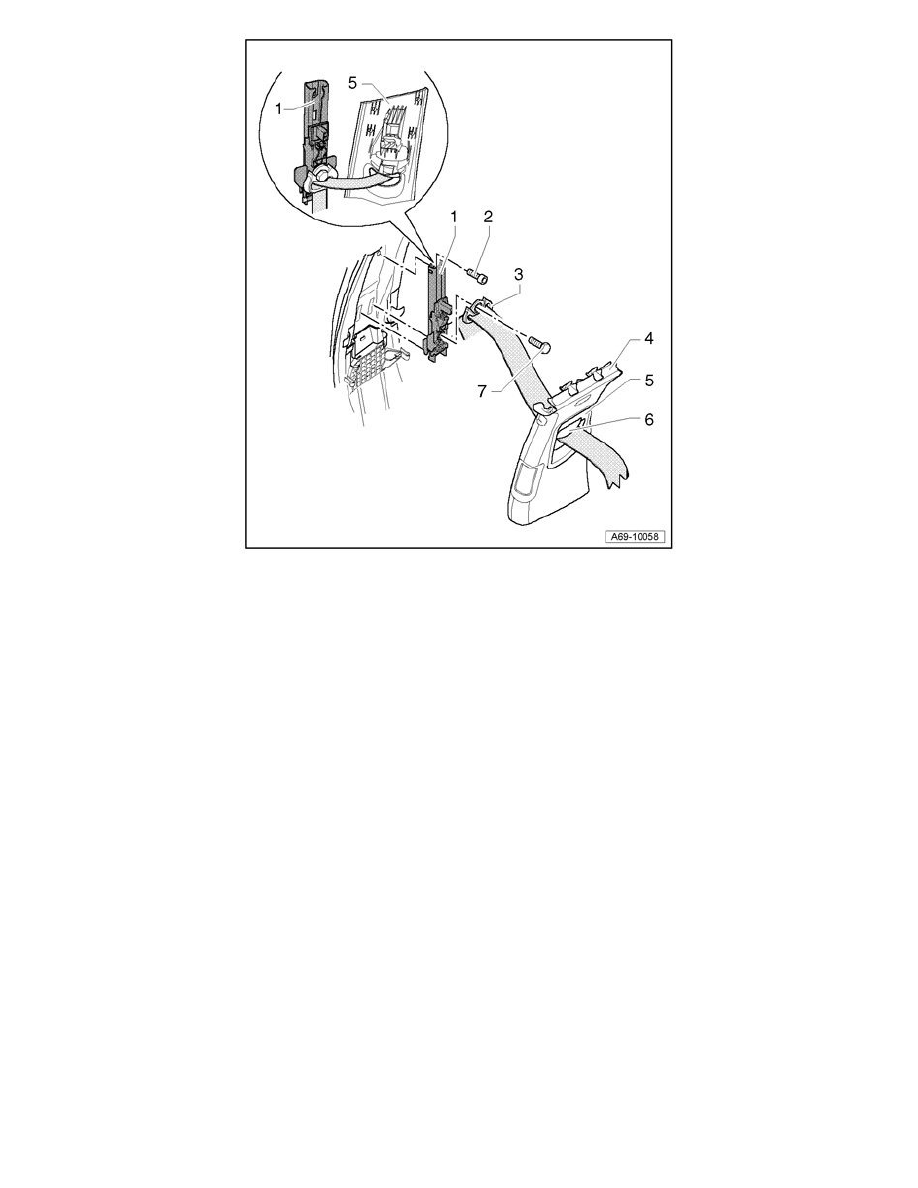

Press button - 6 - and bring slide - 5 - to bottom position.
-
Remove upper B-pillar trim - 4 -.
-
Lay aside upper B-pillar trim - 4 - with threaded belt webbing.
-
Remove bolt - 7 -.
-
Remove belt relay - 3 -.
-
Remove bolt - 2 -.
-
Pull seat belt height adjuster - 1 - up and out of B-pillar.
-
Installing
NOTE:
-
Replacement seat belt height adjusters are always in bottom locking position (assembly position).
-
If removed seat belt height adjusters are reinstalled, these should be placed in bottom position (assembly position).
-
Engage seat belt height adjuster - 1 - in B-pillar.
-
Install screw - 2 - and tighten to specified torque.
-
Install belt relay - 3 - and tighten screw - 7 - to specified torque.
NOTE:
-
Button - 6 - should not be pressed with slide - 5 - when installing upper B-pillar trim - 4 -.
-
Ensure seat belt height adjuster - 1 - is in top position.
-
Thread slide - 5 - onto seat belt height adjuster profile - 1 -.
-
Install upper B-pillar trim - 4 -.
Replacement seat belt height adjuster
-
Firmly press slide - 5 - upward (approx. 60 Nm) after installing upper B-pillar trim - 4 -.
This removes seat belt height adjuster assembly anchorage.
Procedure for all seat belt height adjusters
-
Check function.
