A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

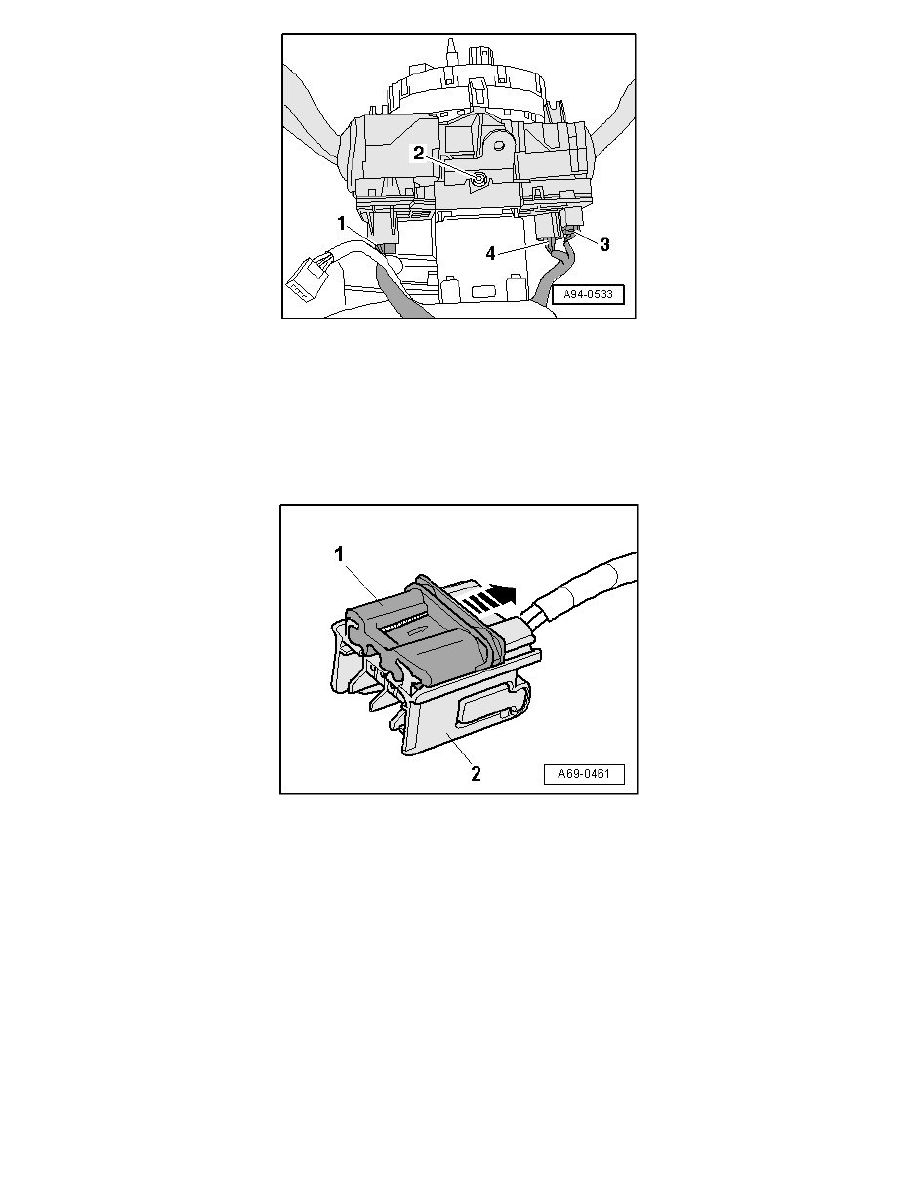

Disconnect electrical connectors - 1 - and - 3 -.
CAUTION!
The technician must discharge static electricity before disconnecting the electrical connector - 4 -, for example by touching the door striker
pin.
-
Disconnect electrical connector - 4 -.
-
Press catch - 1 - in - direction of arrow - until harness connector - 2 - disengages.
-
Carefully pull off steering column switch together with Steering Column Electronic Systems Control Module (J527).
Installing
‹› Tightening Specifications. Refer to => [ Steering Column Switch Module Assembly Overview ] See: Relays and Modules/Relays and Modules -
Steering and Suspension/Relays and Modules - Steering/Steering Column Control Module/Service and Repair/Steering Column Switch Module
Assembly Overview and => [ Tightening specification, steering column trim ] See: Relays and Modules/Relays and Modules - Steering and
Suspension/Relays and Modules - Steering/Steering Column Control Module/Service and Repair/Steering Column Switch Module Assembly
Overview.
Install in reverse order of removal, observing the following:
-
Make sure that all harness connectors are engaged properly.
-
Insert top trim piece for steering column switch into catches of bottom trim piece, press together and bolt.
-
Install lower instrument panel cover on driver's side. Refer to=> Body Interior 68 Removal and Installation.
-
Install steering wheel.
