A6 Quattro Wagon V6-3.2L (BKH) (2006)
Oxygen Sensor: Service and Repair
Oxygen Sensor before Catalytic Converter, Bank 2
Oxygen Sensor before Catalytic Converter, Bank 2
Special tools, testers and auxiliary items required
‹› Ring spanner 7-piece set for oxygen sensor (3337)
Removing
-

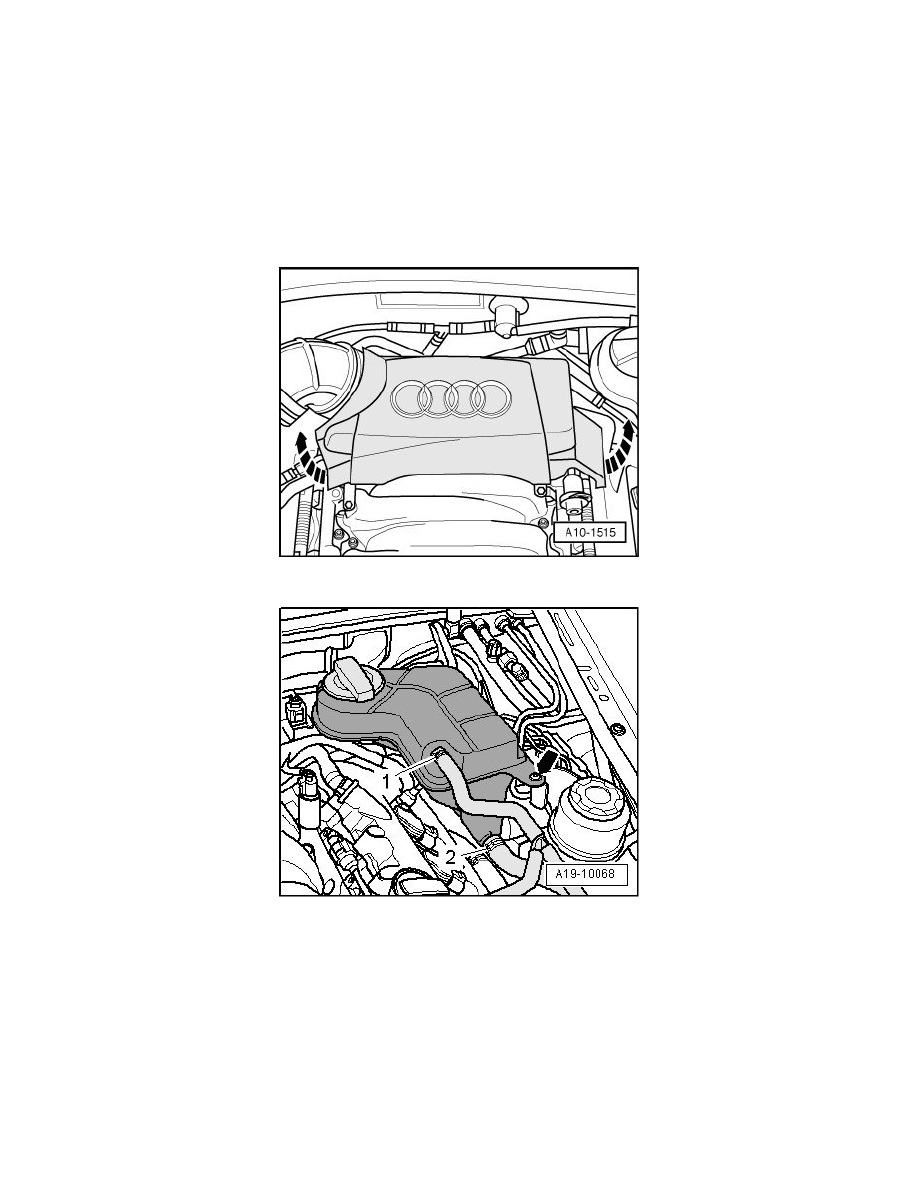

Remove rear engine cover - arrows -.
-
Remove coolant expansion tank - arrow -.
-
Disconnect electrical connection from Engine Coolant Level (ECL) warning switch (F66) at bottom of coolant reservoir and set aside coolant
reservoir with coolant hoses - 1 - and - 2 - connected.
-
Disconnect electrical harness connector - 1 - for Heated Oxygen Sensor (HO2S) 2 (G108) and free up wire.
