A6 Quattro Wagon V6-3.2L (BKH) (2006)

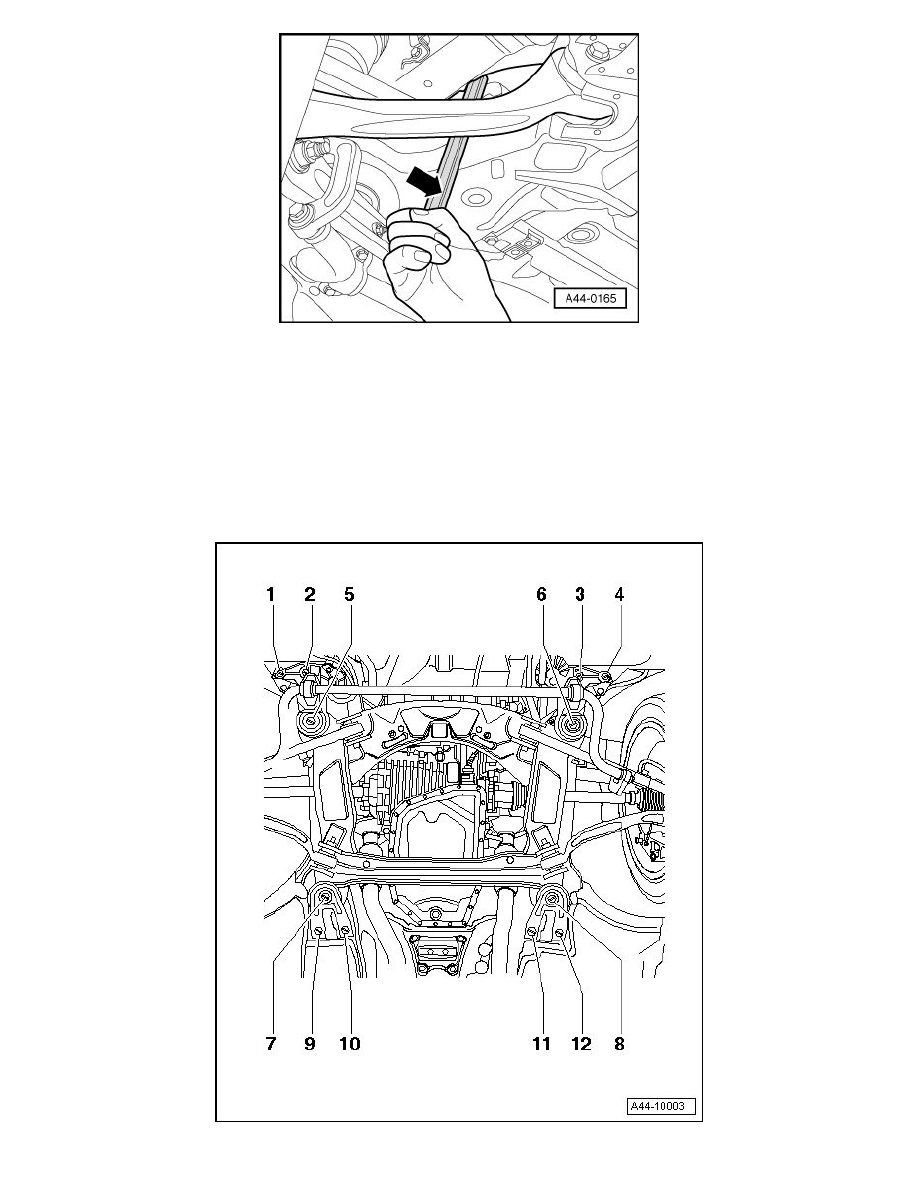

Press in center of subframe between subframe and body longitudinal member.
If you do not have a plastic-coated tire iron, wrap a standard tire iron in adhesive tape.
CAUTION!
Do not damage any parts!
Specified values for wheel alignment. Refer to => [ Wheel Alignment Specified Values ] See: Specifications.
-
Install new hex bolts - 6 - and - 7 - in succession and tighten => [ (Item 16) Bolt ] See: Suspension/Stabilizer Bar/Service and Repair/Removal and
Replacement/Front Suspension/Subframe, Engine Mount Bracket, Stabilizer Bar, Crossmember, Coupling Rod Assembly Overview.
