A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

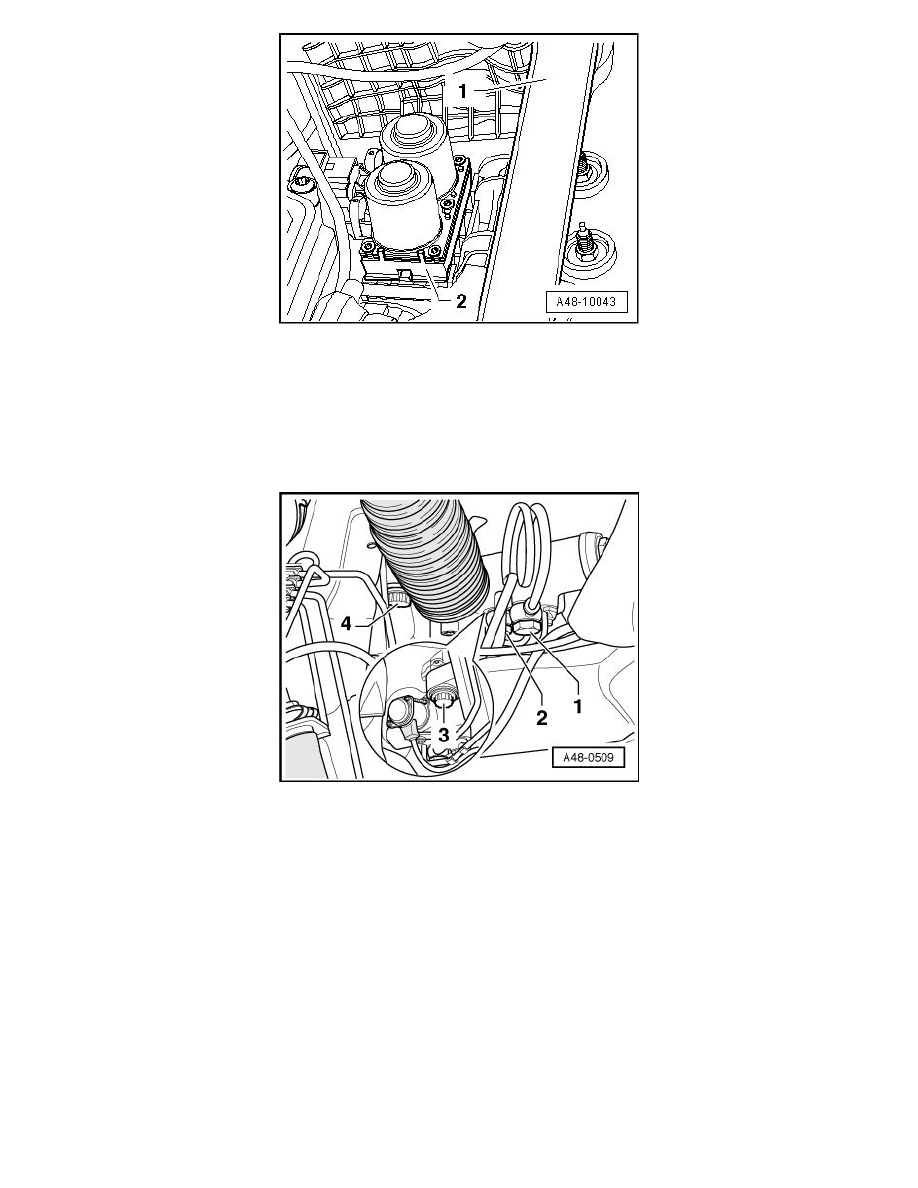

If equipped, install the dome brace - 1 -. Refer to => [ Tower Brace ] See: Suspension/Service and Repair/Removal and Replacement/Front
Suspension/Tower Brace.
CAUTION!
The valve unit is flushed with coolant and can heat up to 120°.
-
Tighten banjo bolt - 2 - with a bent open end wrench, for example Hazet 615 => [ (Item 13) Banjo bolt ] See: Power Steering Gear Assembly
Overview. Note the installation position => [ Line installation location on the steering gear ] See: Power Steering Gear Assembly Overview
-
Tighten banjo bolt - 1 - => [ (Item 18) Banjo bolt with check valve ] See: Power Steering Gear Assembly Overview. Note the installation position
=> [ Line installation location on the steering gear ] See: Power Steering Gear Assembly Overview
-
Insert tie rod end into the wheel bearing housing as far as the stop.
‹› Install the tie rod end by hand only into the wheel bearing housing - 1 -. Do not put stress on the tie rod end sealing washer - 2 -.
