A6 Quattro Wagon V6-3.2L (BKH) (2006)

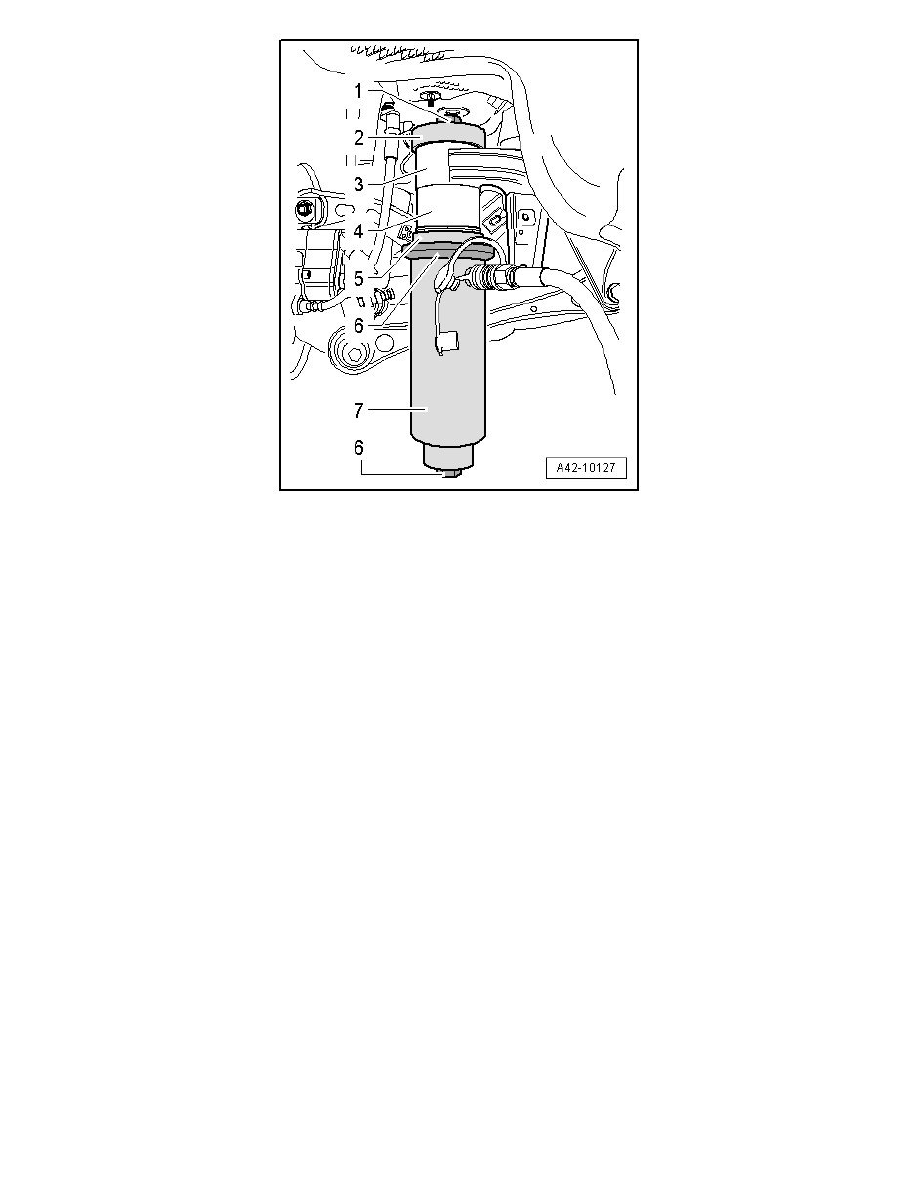

1. Spindle (T10263/4) with nut (T10263/5)
2. Thrust piece (T40141). Conical side faces body.
3. Subframe
4. Bonded rubber bushing
5. Washer (T10205/15)
6. Washer (T10205/4)
7. Hydraulic cylinder (VAS 6178)
8. Spindle (T10263/4) with nut (T10263/5)
-
Press front bearing into subframe until stop.
Further installation is in reverse sequence to removal. Observe the following when doing so:
‹› Install coil springs or air springs, respectively, only if threaded connection of subframe has been tightened to specified tightening specification.
-
Installing coil springs. Refer to => [ Coil Spring ] See: Suspension Spring ( Coil / Leaf ) or air springs => [ Air Spring ] See: Suspension Control (
Automatic - Electronic )/Air Spring/Service and Repair/Removal and Replacement/Rear Suspension/Air Spring, respectively.
Tightening specifications. Refer to => [ Subframe, Stabilizer Bar and Coupling Rod Assembly Overview ] See: Rear Subframe/Service and Repair.
-
On vehicles with air suspension, position vehicle on wheels. Refer to => [ Positioning Vehicle on Hoist and Wheels ] See: Service and
Repair/Procedures/Positioning Vehicle on Hoist and Wheels.
-
Tighten wheels. Refer to => Wheel and Tire Guide 44 Specifications.
