A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-5508003.png)
-

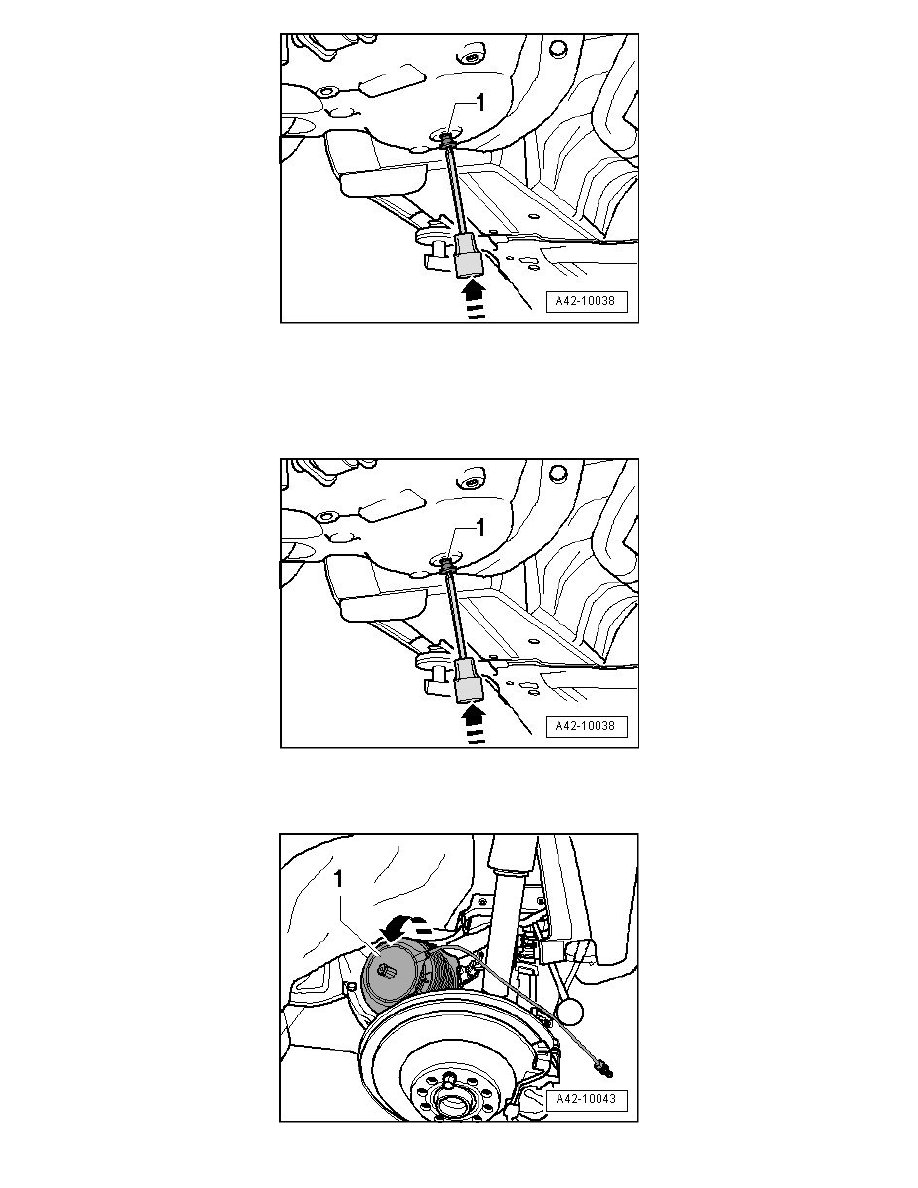

Press air spring out of trapezoidal control arm via socket attachment in direction of - arrow -.
CAUTION!
Air spring must be removed from trapezoidal control arm only by pressing via the socket attachment. Do not hit the socket attachment.
-
Remove bolts - 1 - completely.
‹› The air spring can be compressed when being removed or installed.
-
Lift air spring - 1 - upward out of trapezoidal control arm, tilt outward in direction of - arrow - and remove.
