A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-5607002.png)
-

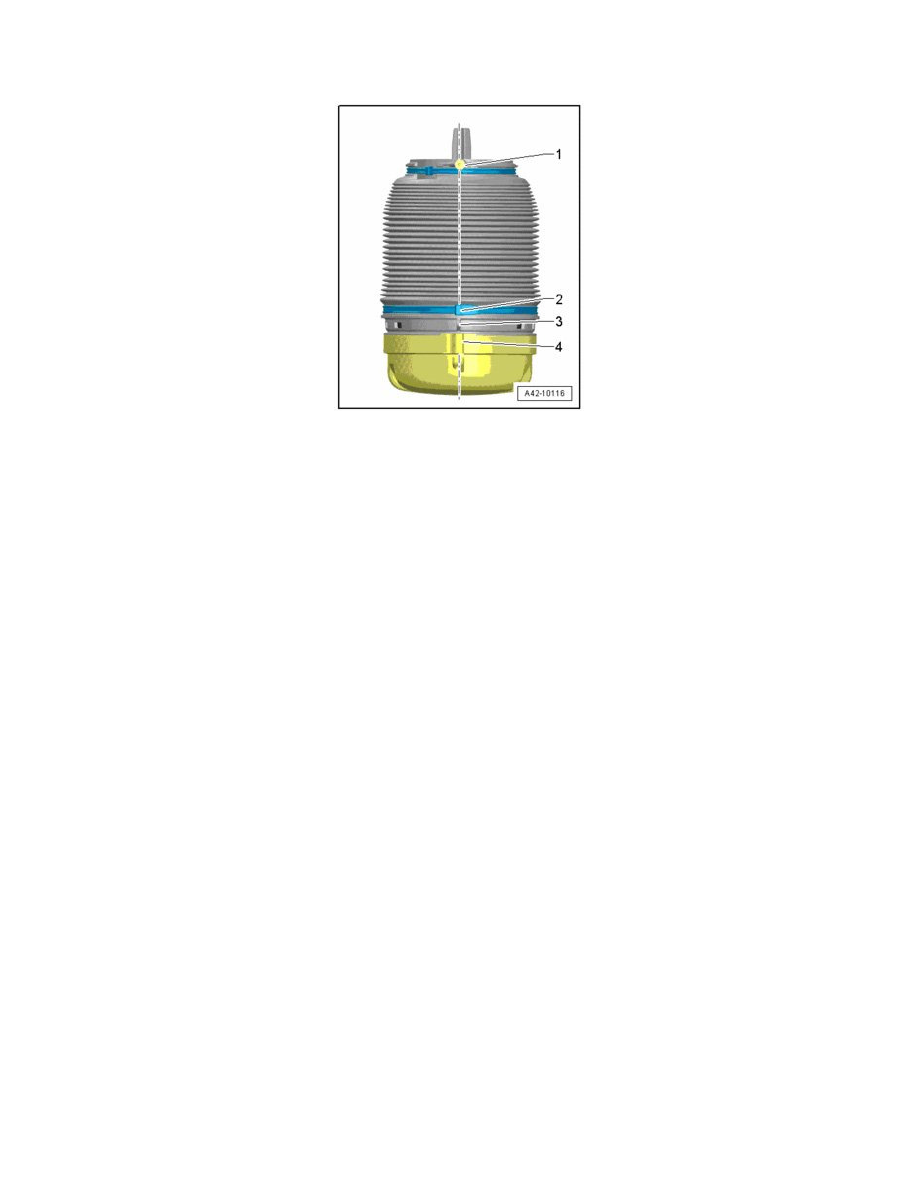

Attach boot - 4 - at piston - 2 - so that cutout - arrows - is next to connection of air tube.
-
Install clamp - 3 - with ear at center of groove - 1 - and tension using hose clamp pliers V.A.G. 1275.
-
Attach clamp - 2 -.
-
Align clamp - 2 - with ear so that it aligns with connection of air tube - 1 - and pins - 3 and - 4 -.
-
Tension clamp - 2 - using hose clamp pliers V.A.G. 1275.
