A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

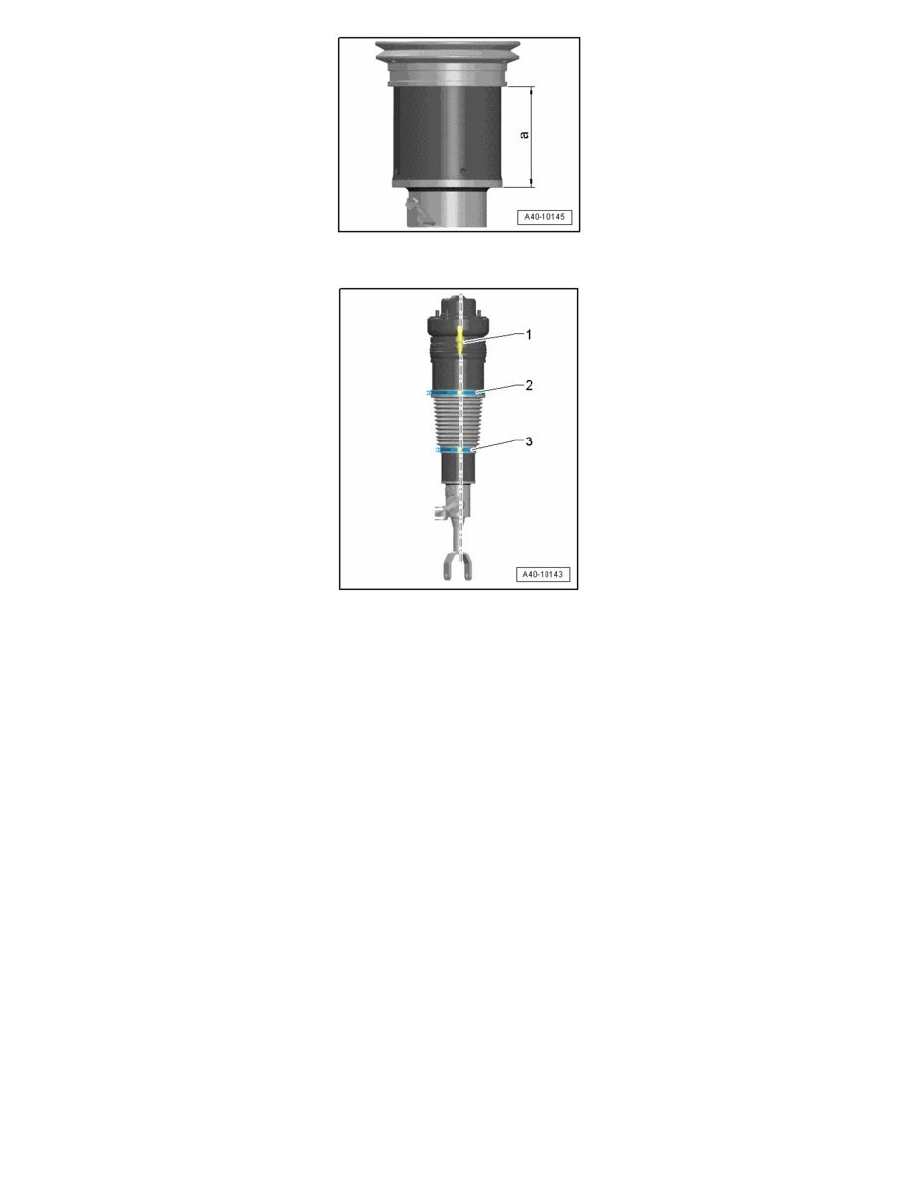

Measure dimension - a - between boot and lower edge of suspension strut housing. Distance - a - must be 70 mm.
-
Align clamps - 2 - and - 3 - so that they align with residual pressure valve - 1 -.
-
Before tensioning clamps, make sure boot is not twisted, adjust if necessary.
-
Tension clamps using hose clamp pliers V.A.G. 1275.
