A6 Quattro Wagon V6-3.2L (BKH) (2006)
Differential Output Shaft: Service and Repair
Flange shaft (right-side), removing and installing 09L, 6 Speed AWD A/T
Special tools, testers and auxiliary items required
^

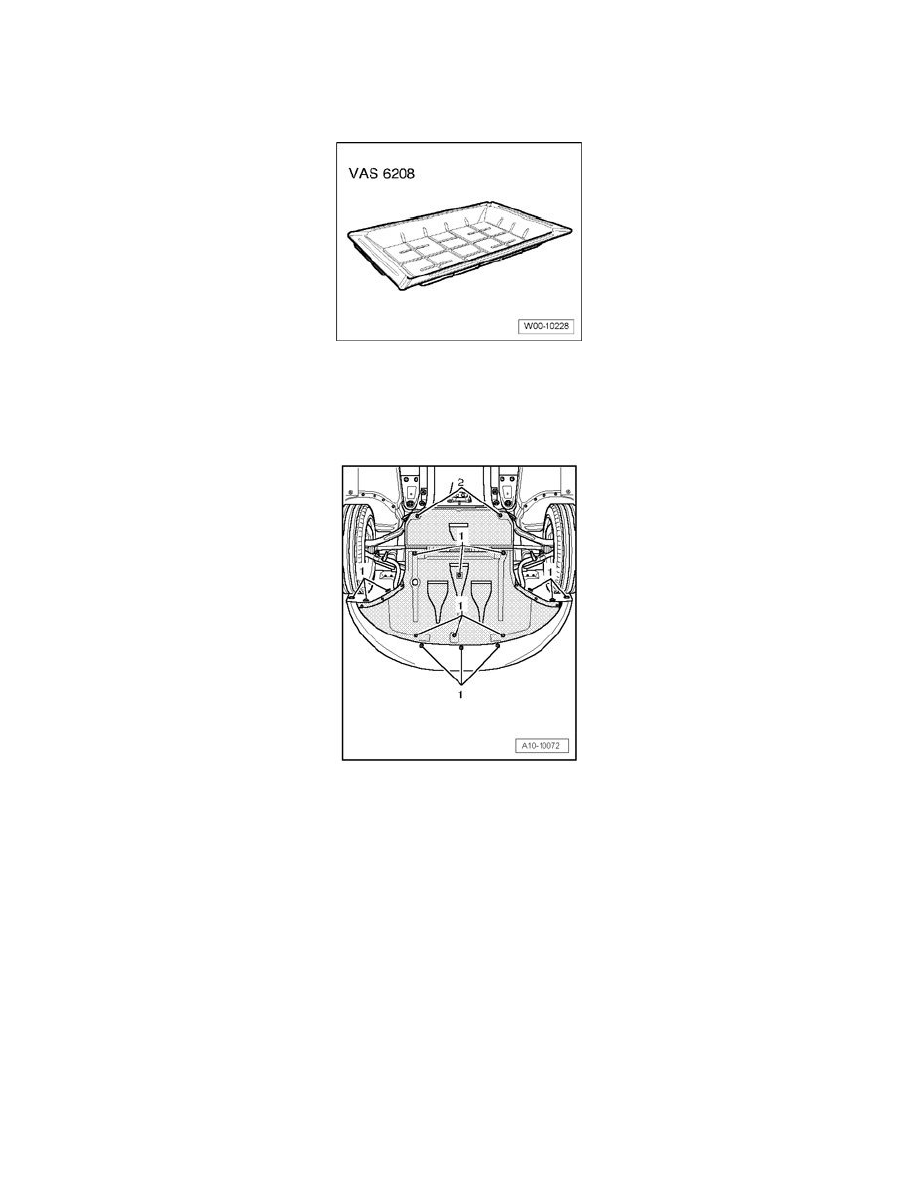

Drip tray for workshop hoist VAS 6208
Removing
^
Transmission installed
-
Activate jacking mode.
-
Unfasten quick-release catches - 2 - and detach rear noise insulation.
-
Unbolt axle shaft (right-side) from flange on transmission and tie up.
Note:
^
The right-side axle shaft must be removed on vehicles with a front exhaust pipe on the right side.
-
Place drip tray for workshop hoist VAS 6208 under transmission.
