A6 Quattro Wagon V6-3.2L (BKH) (2006)
-
Press retainer tab -1- with flat screwdriver and pry out luggage compartment light (Figure 10, -3-).
-
Disconnect electrical connector (Figure 10, -2-).
-

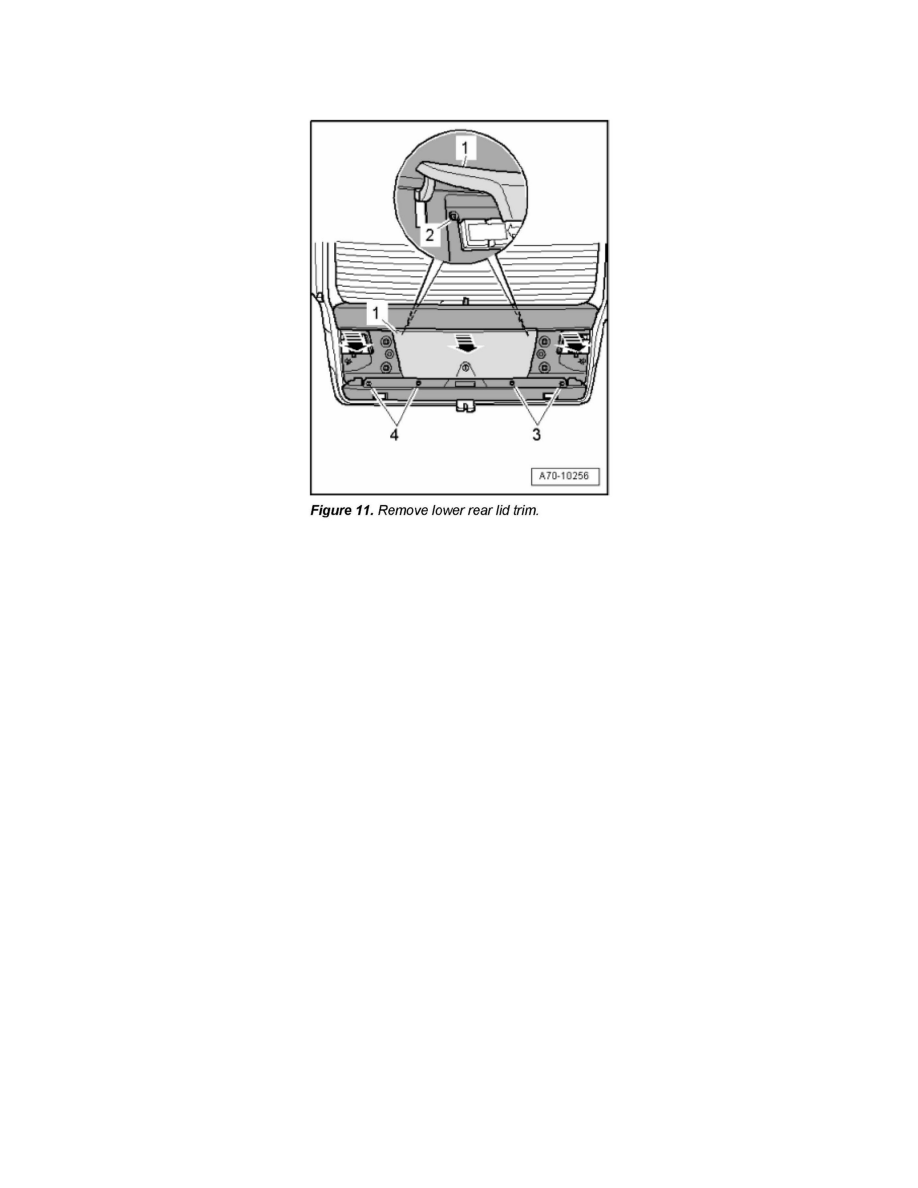

Remove bolts (Figure 11, -3- and - 4-).
-
Open warning triangle cover (Figure 11 -1-) and remove screws (Figure 11 -2-).
-
Carefully pull trim up from rear lid - arrows- by carefully loosening left and right trim spring clamps from rear lid.
-
Grasp between trim and rear lid and continue disengaging spring clamps.
-
Remove trim.
Removing upper rear lid trim
