A8 Quattro Sedan V8-4.2L (BVJ) (2008)
/Page-2877001.png)
Emergency Battery: Service and Repair
Telematics Emergency Battery
Telematics
Telematics Emergency Battery
-
Move driver's seat to rearmost position.
CAUTION!
‹› Activate Telematics Service Mode => [ Telematics Service Mode, Activating and Deactivating ] See: Global Positioning
System/Description and Operation
CAUTION!
‹› Switch off all electrical components.
‹› Switch off ignition and remove ignition key.
-
Fold back carpeting ahead of driver's seat.
-

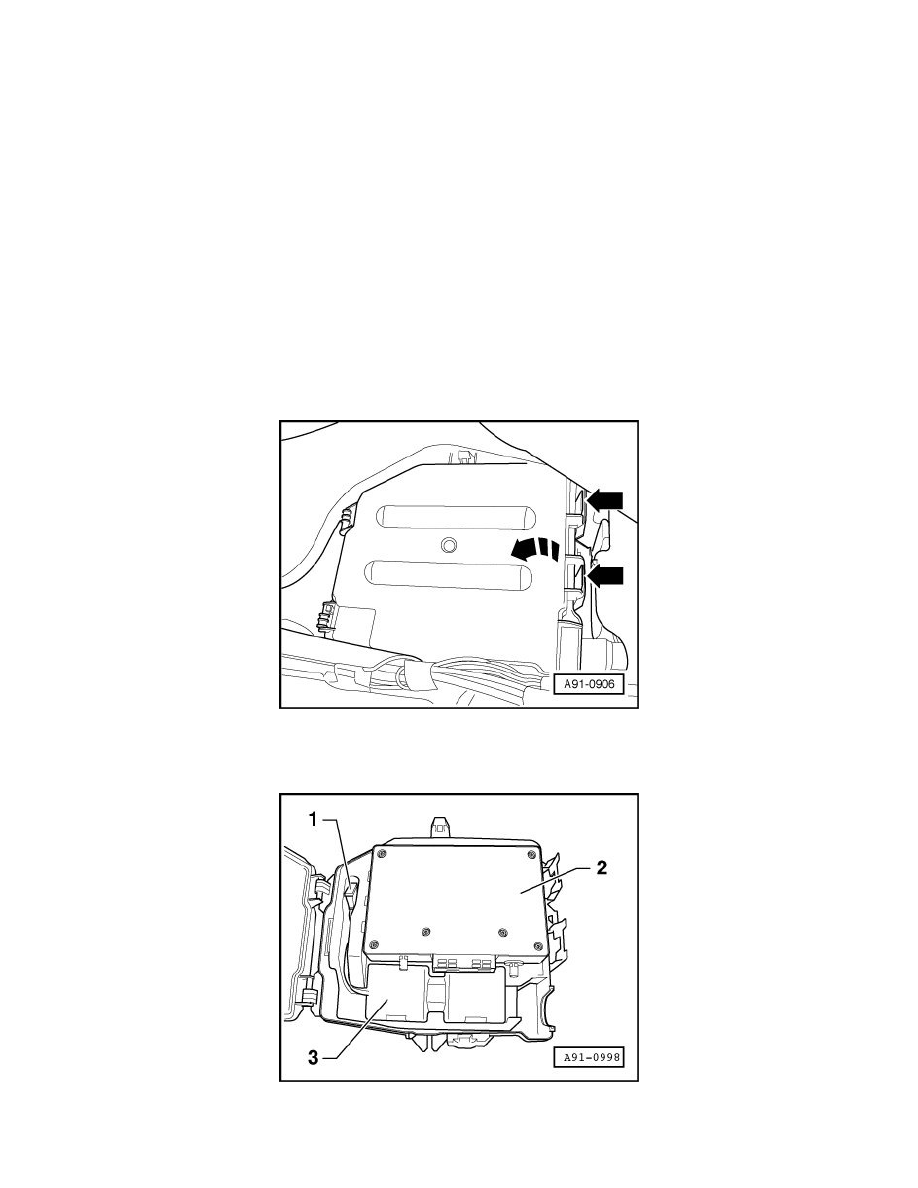

Unclip electronics box cover and open box - arrows -.
The Telephone/Telematic Control Module and auxiliary battery are clipped into place.
-
Separate electrical connection - 1 -.
-
Lift control module - 2 - from electronics box.
-
Unclip and remove auxiliary battery - 3 - from retainer.
