Removing and Installing Luggage Compartment Floor Covering on A8L V8-42L (BFM)
Carpet: Service and Repair
Front and Rear Carpet Strip, Removing and Installing
Front And Rear Carpet Strip, Removing And Installing
Removing
-
Remove carpet from front and rear carpet strips.
-
Unclip carpet strips from center console.
Installing
NOTE Always start by installing left rear or right rear carpet strip.
-

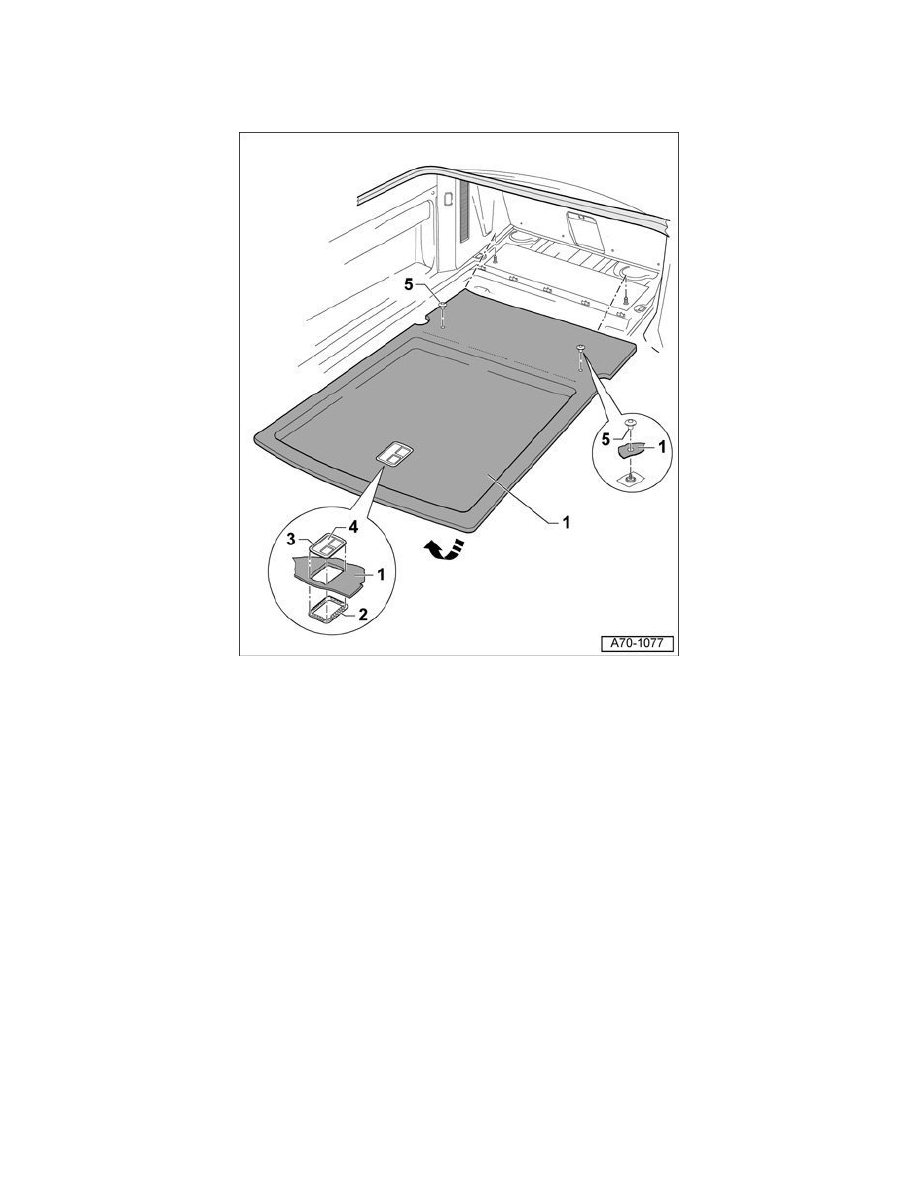

Position carpet strips - 1 - and - 2 - on carpet - 3 -.
Make sure floor covering - 3 - is correctly positioned in clips - 5 -.
-
Position carpet strips - 1 - and - 2 - to center console - 4 -.
-
Press carpet - 3 - into position. Carpet strips must engage in center console clips - 5 -.
