A8L V8-4.2L (BFM) (2004)
Steering Column Control Module: Service and Repair
Steering Angle Sensor
Steering Column Switch Module
Steering Angle Sensor
Removing
-
Remove airbag spiral spring/return spring with slip ring. Refer to => [ Airbag Spiral Spring/Return Spring With Slip Ring ] See: Airbag Spiral
Spring/Return Spring With Slip Ring
-

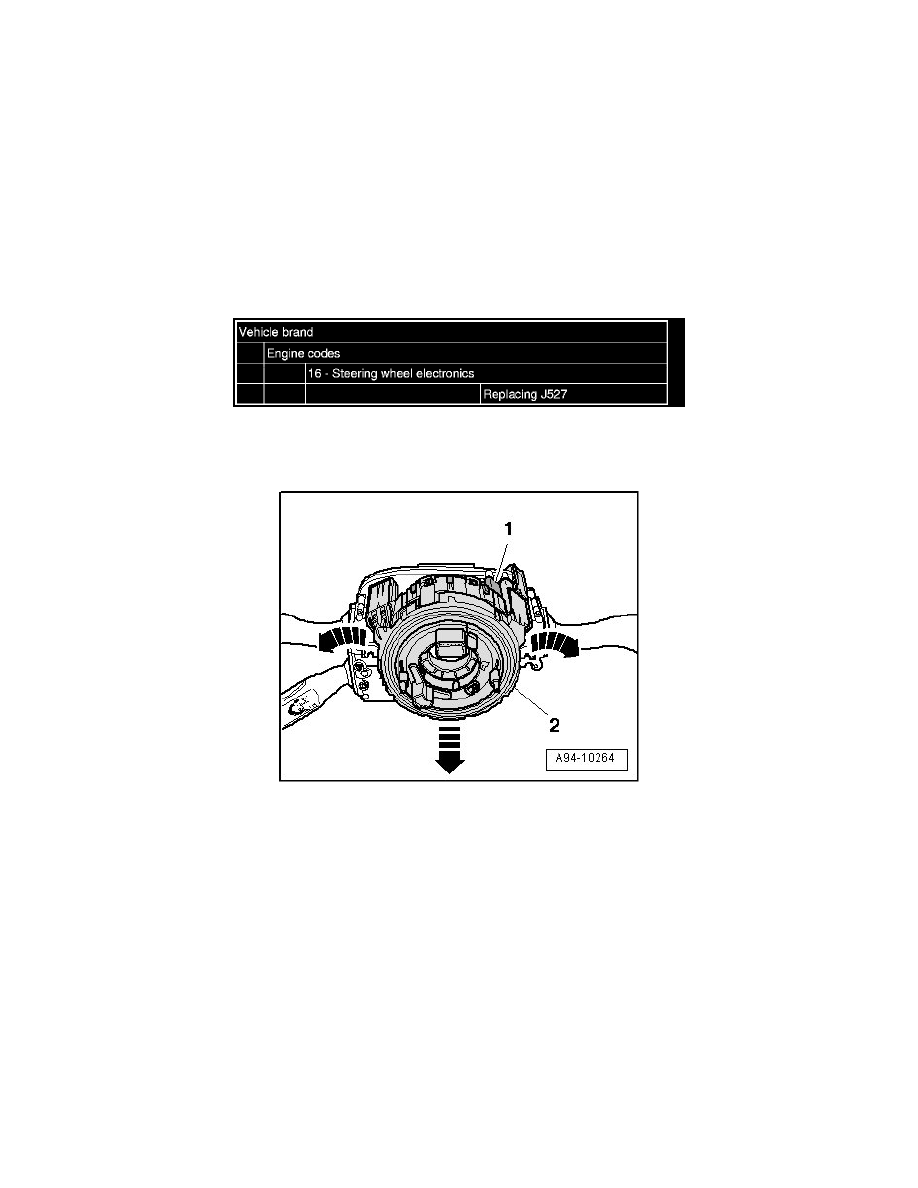

Remove steering angle sensor (G85) - item 1 - - arrow -.
Installing
Install in reverse order.
-
After replacing steering angle sensor, it must be calibrated via "Guided Functions" with the vehicle diagnosis, testing and information system
(VAS 5051B).
