Q7 Quattro V6-3.6L (BHK) (2007)
-

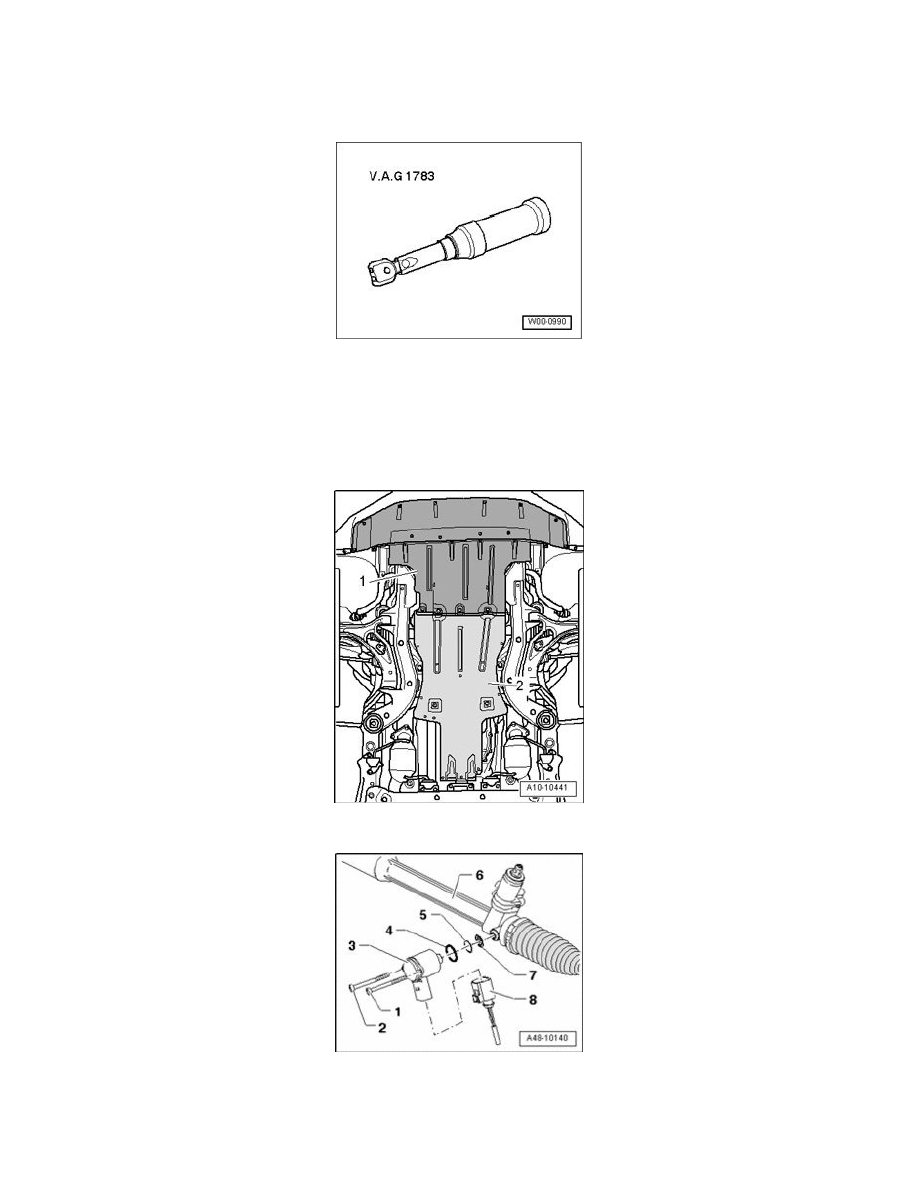

Remove Solenoid Valve - 3 - from steering gear - 6 -.
-
Remove screen - 7 - from steering gear - 6 -, clean steering gear if necessary.
Installing
Installation is in reverse order of removal. Observe:
-
Insert a new screen - 7 -.
-
Lightly coat gasket - 4 - and - 5 - with steering gear grease A0F 063 000 04 and insert.
-
Place Solenoid Valve - 3 - in steering gear - 6 - as far as stop. Do not tilt Solenoid Valve.
CAUTION!
^
Always follow screw tightening sequence.
-
Tighten screws - 1 - and - 2 - as follows:
1. Tighten screw 1 to 0.5 Nm.
2. Tighten screw 2 to 1.5 Nm.
3. Tighten screw 1 to 3.0 Nm.
4. Tighten screw 2 to 3.0 Nm.
-
On vehicles with air suspension, position vehicle on wheels Placing vehicle on hoist and on wheels.
