S5 Quattro Coupe V8-4.2L (CAUA) (2009)
Engine Mount: Service and Repair
Left Engine Mount
Left Engine Mount
‹› To avoid repeat repairs, do the following if the engine mount is faulty:
‹› Replace the faulty engine mount and its retaining plate.
‹› Likewise replace the engine mount on the opposite side, check the retaining plate and replace it if necessary.
Special tools, testers and auxiliary items required
‹› Engine Support Bridge (10 - 222 A)
‹› Engine/Transmission Jack (V.A.G 1383 A)
‹› Engine Support Supplement Set (T40093)
Removing
-
Position the front wheels so they are straight.
CAUTION!
Risk of destroying electrical components.
‹› Observe measures when disconnecting battery.
-
Disconnect battery.
-

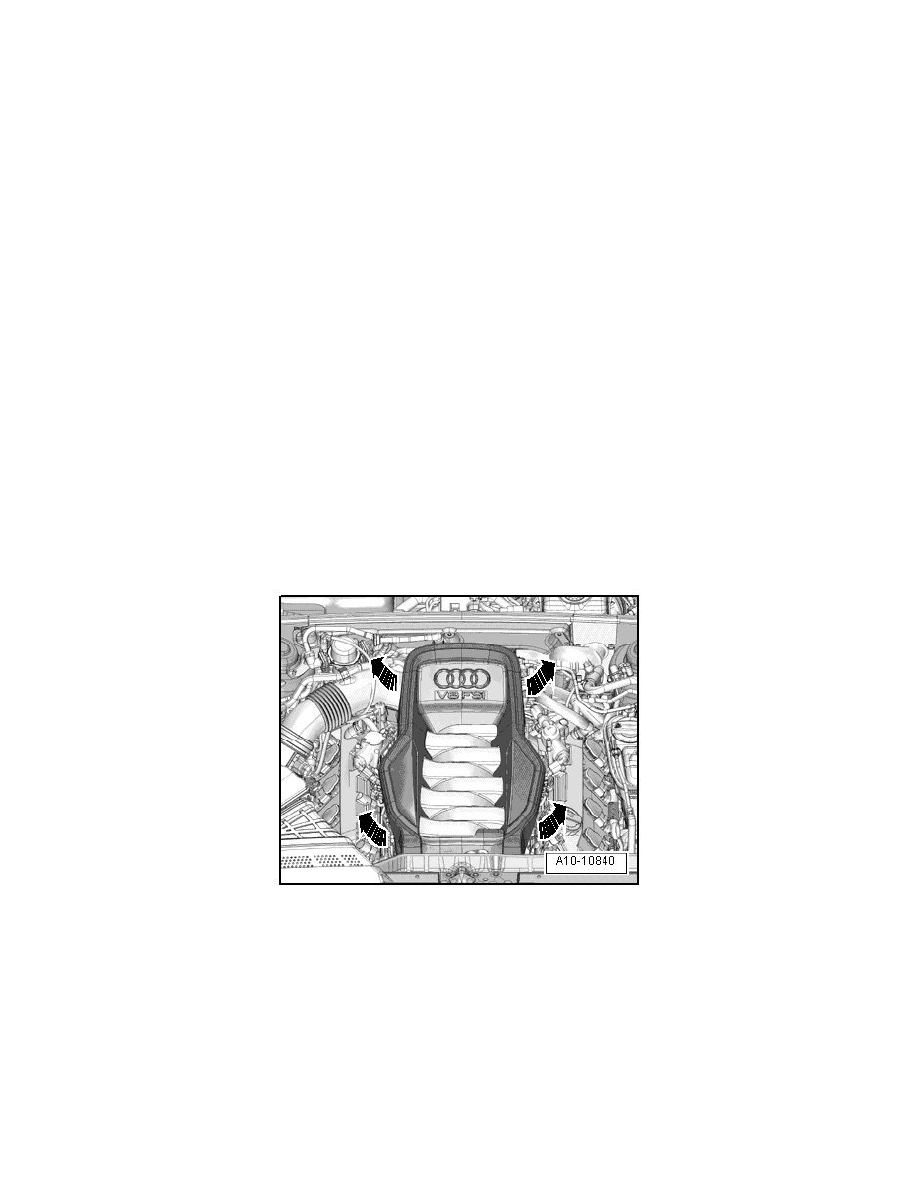

Remove engine cover - arrows -.
-
Install the Engine Support Bridge (10 - 222 A) with Adapters (T40093/6) on the left and right strut towers, as shown in the illustration.
