S6 Quattro Sedan V10-5.2L (BXA) (2007)
Oil Temperature Sensor/Switch: Service and Repair

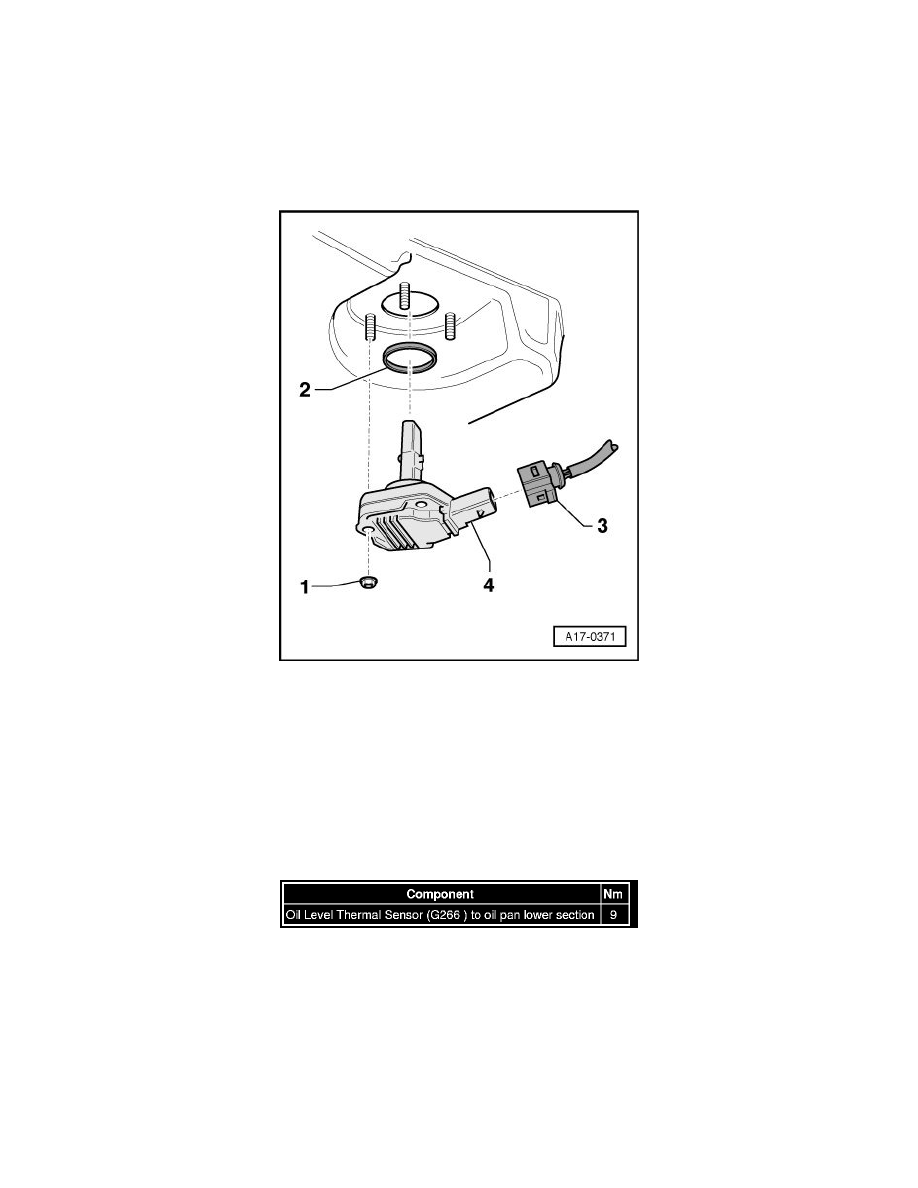

Oil Level Thermal Sensor
Removing
-
Drain engine oil.
-
Disconnect electrical connector - 3 -.
-
Remove nuts - 1 - and the Oil Level Thermal Sensor (G266) - 4 -.
Installing
Installation is in reverse order of removal, note the following:
‹› Replace the seal - 2 -.
-
Fill engine oil and check oil level.
Tightening Specifications
