S6 Quattro Sedan V10-5.2L (BXA) (2007)
Air Spring: Removal and Replacement

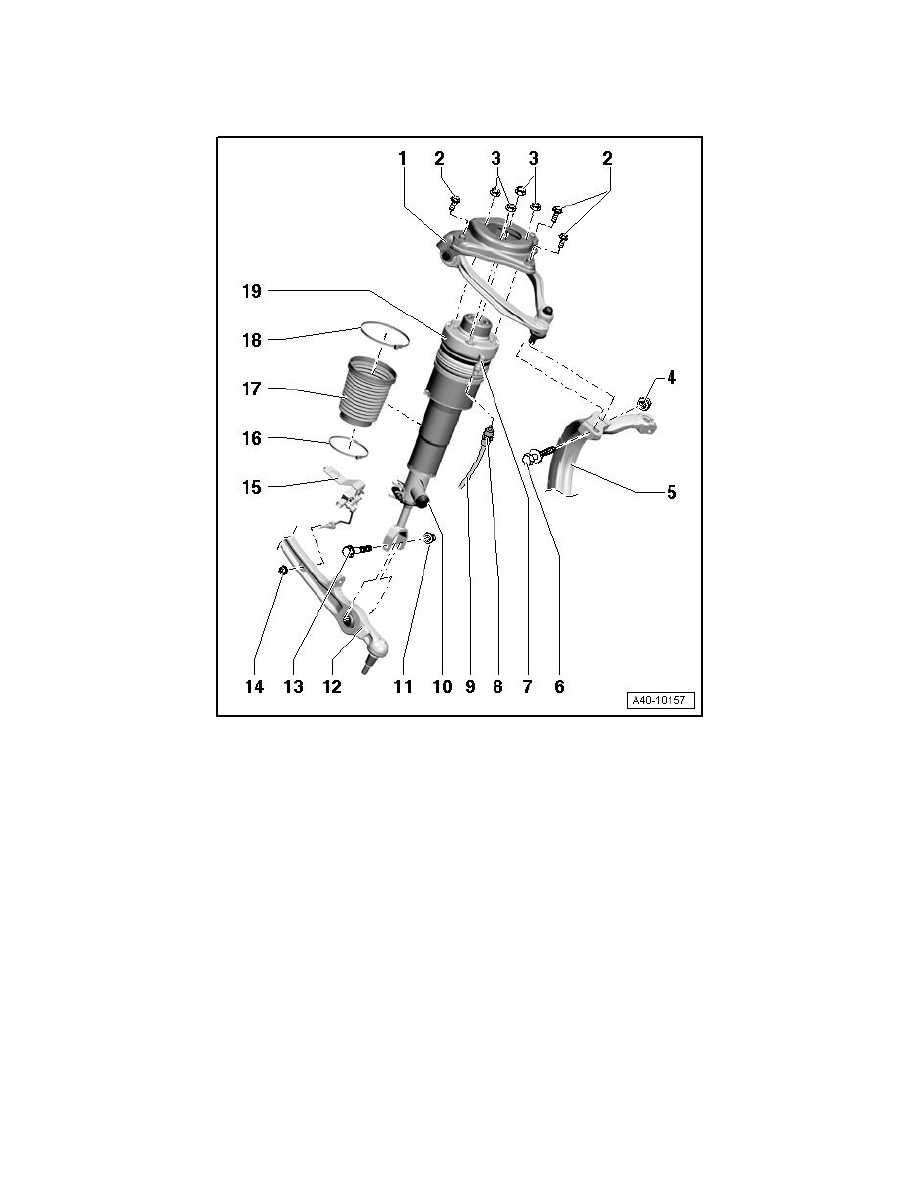

Air Suspension Strut, Mounting Bracket and Upper Control Arm Assembly Overview
Air Suspension Strut, Mounting Bracket and Upper Control Arm Assembly Overview
1
Mounting bracket
‹› Suspension Strut with Mounting Bracket, Removing and Installing, refer to => [ Air Suspension Strut, Mounting Bracket ] See: Air Suspension
Strut, Mounting Bracket
2
Bolt
‹› 50 Nm + 90° additional turn
‹› Always replace after removal
‹› Follow tightening sequence => [ Tightening specification of threaded connection depicted as numbered is mandatory. ] See: Air Suspension
Strut, Mounting Bracket
3
Nut
‹› 23 Nm
4
Nut
5
Wheel Bearing Housing
6
Bolt
