1 Series E81 116i (N43) 3-door
11 21 500
Replacing crankshaft (N43B16)
Necessary preliminary tasks:
•
Remove engine.
•
Mount engine on assembly stand.
•
Remove cylinder head.
•
Remove oil sump.
•
Remove balancing shafts with oil pump.
•
Remove vibration damper.
•
Remove flywheel.
•
Remove timing chain.
•
Remove all pistons.

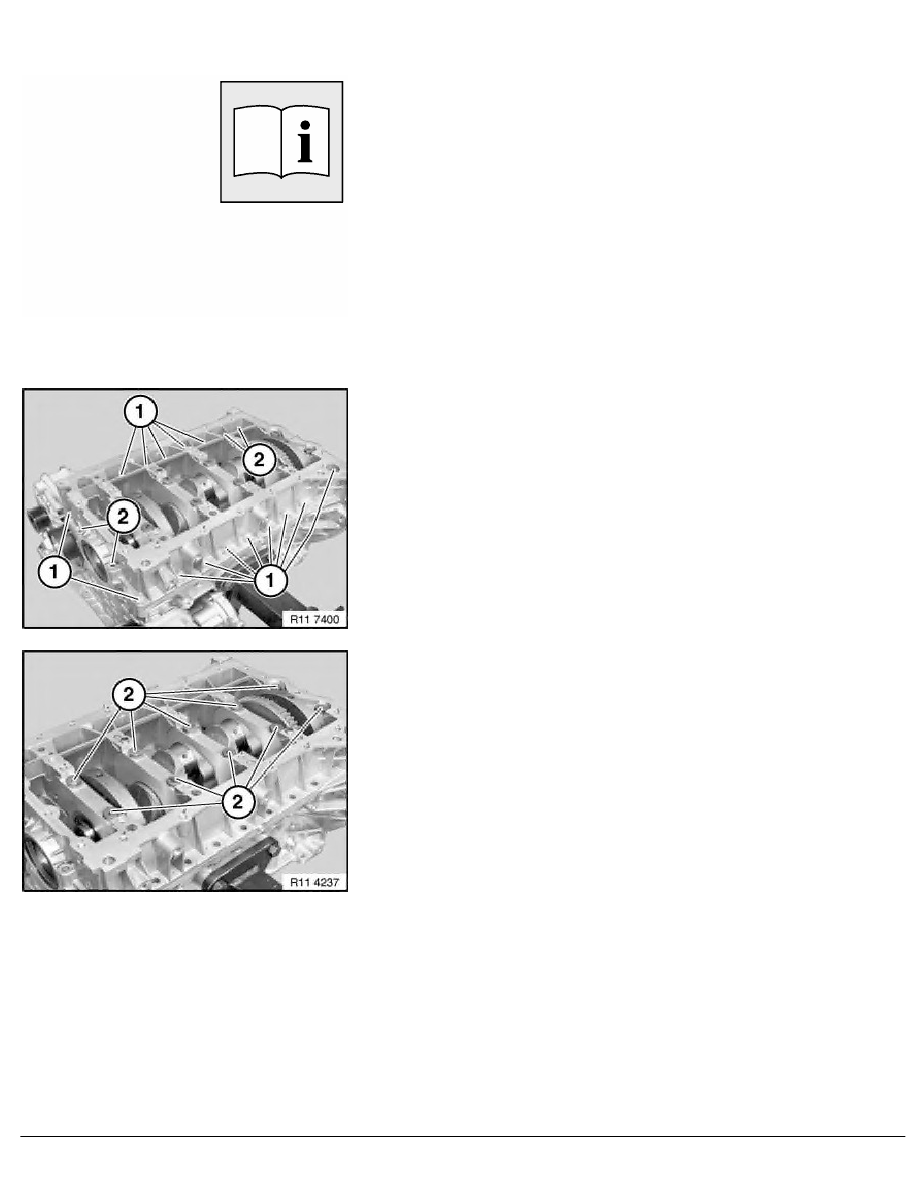

Release screws (1) and (2).
Tightening torque: 11 11 2/3AZ .
Important!
Screws (1) 26 Nm
Screws (2) 40 Nm
Release screws (2).
Remove lower crankcase.
Tightening torque: 11 11 1AZ
.
RA Replacing crankshaft (N43B16)
