1 Series E81 116i (N43) 3-door

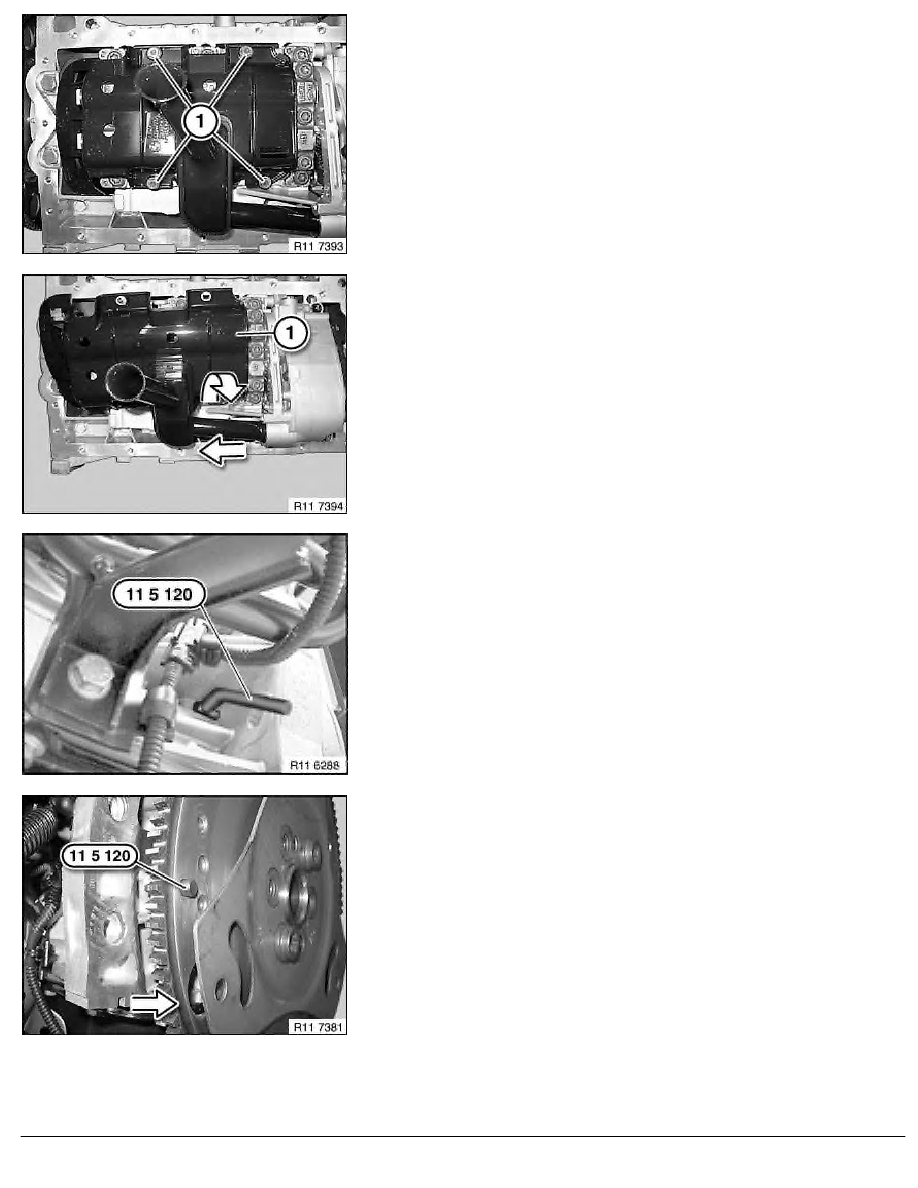

Release screws (1).
Tightening torque: 11 41 1AZ
.
Rotate suction tube (1) of oil pump downwards and pull out.
Installation:
Replace sealing ring on suction tube (1).
Note:
The special tool bore for the TDC position is located on the inlet
side underneath the starter motor.
Crank engine at central bolt and secure flywheel with special tool
11 5 120 .
Automatic transmission only
Illustration does not show automatic transmission.
Important!
On engines with automatic transmissions, there is shortly
before the special tool bore for the TDC position a large bore
which can be confused with the special tool bore.
If the flywheel is secured in the correct bore with special tool
11 5 120 , the engine can no longer be moved at the central bolt.
RA Removing and installing/replacing oil pump with balancing shafts (N43)
