1 Series E81 116i (N43) 3-door
•
Seal all fuel system openings with protective caps or
plugs.
Necessary preliminary tasks:
•
Remove pressure line
Recycling:
Fuel escapes when fuel lines are detached.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.

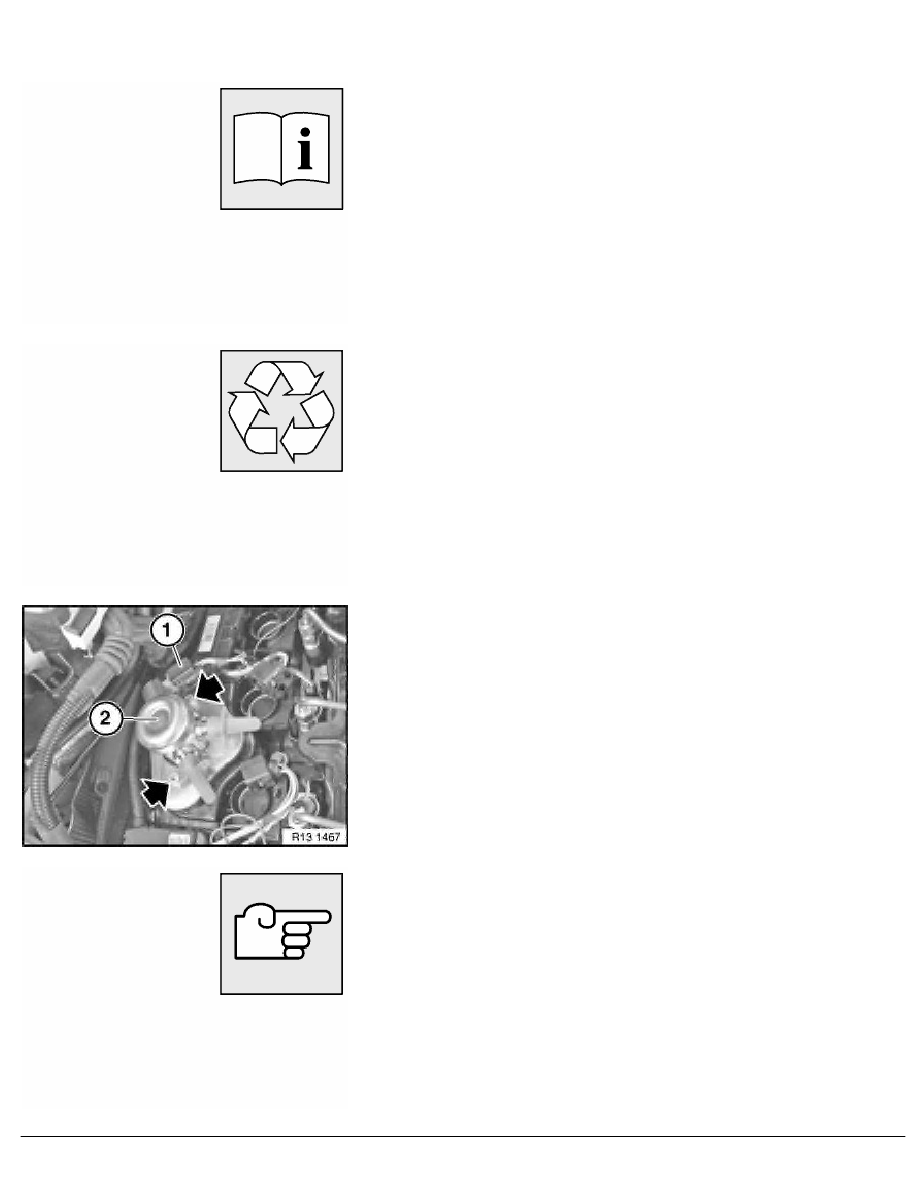

Unlock plug (1) and remove.
Alternately loosen screws by several turns and remove high-
pressure pump (2).
Installing high-pressure pump:
Installation of high-pressure pump is described separately from
removal.
RA Removing and installing or replacing high-pressure fuel pump (N43)
