1 Series E81 116i (N43) 3-door

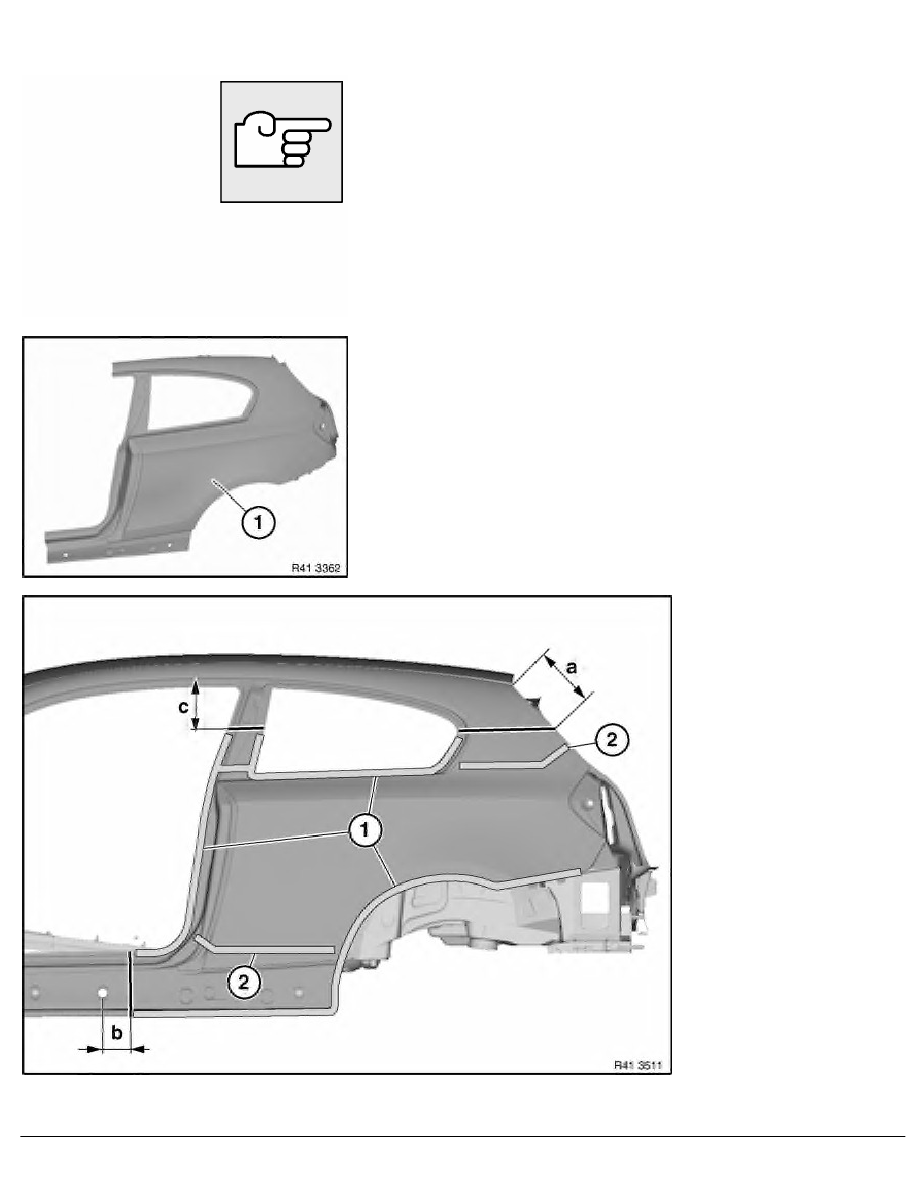

Important!
Cut outer metal sheet only.
Measurement a = approx. 220 mm from roof edge.
Measurement b = approx. 120 mm from centrepoint of hole dia. 20 mm
Measurement c = approx. 180 mm from edge of roof frame
Open weld joints in areas (1).
Installation information:
-
Apply window glass adhesive to cavity acoustic baffles (2).
-
Weld in reinforcing panels at all severance cuts.
Open weld joints in areas (1).
Open weld joints in areas (1).
Open brazed joint in area (2).
Take off side panel.
RA Replacing rear left side panel
