1 Series E81 116i (N43) 3-door
51 71 000
Removing and installing / replacing seal on
front door, left or right
Note:
Work shown on E92 way of example, deviations in detail are
possible in other vehicle models.

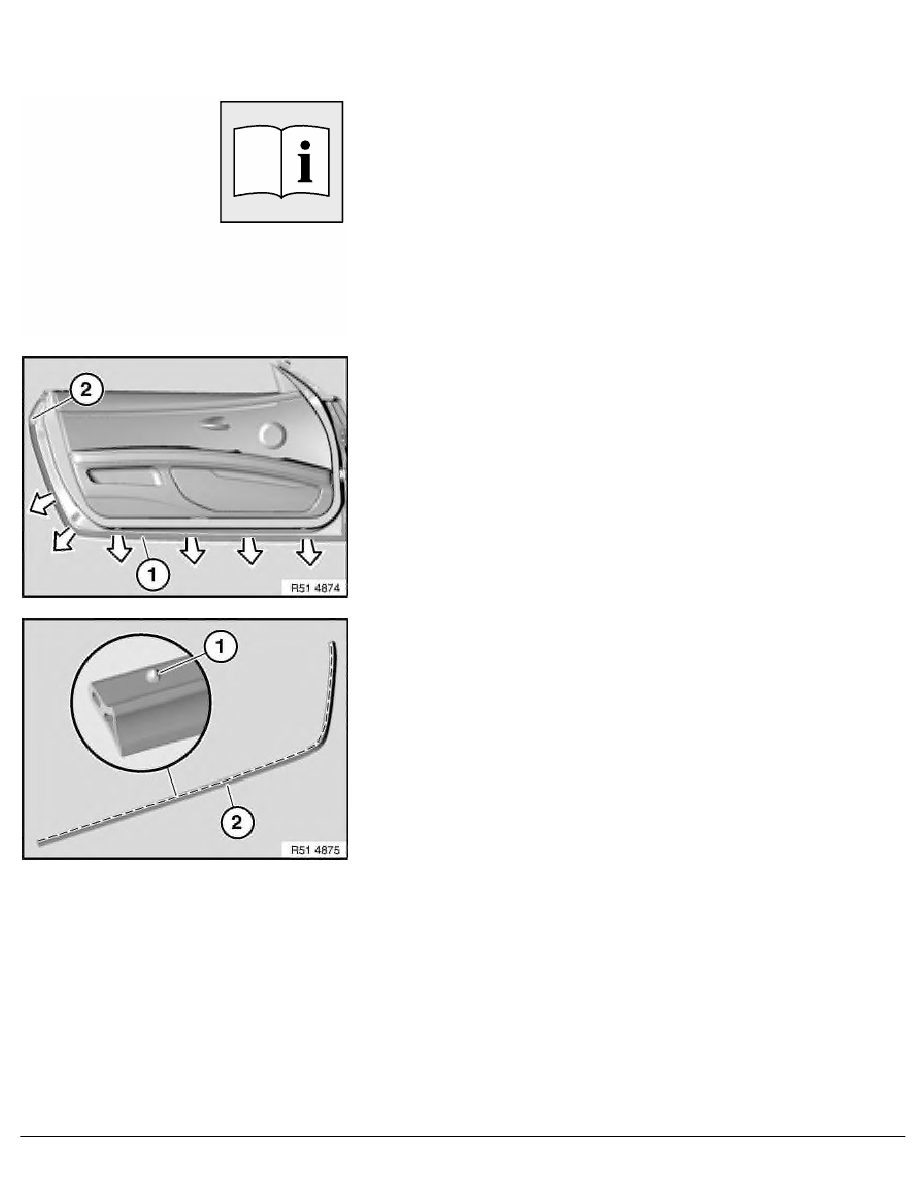

Unclip seal (1) in direction of arrow from front door.
Installation:
Make sure seal (1) is correctly seated on window guide (2).
Installation:
Clips (1) on seal (2) must not be damaged.
RA Removing and installing / replacing seal on front door, left or right
BMW AG - TIS
15.01.2013 20:31
Issue status (12/2007) Valid only until next DVD is issued
