1 Series E81 116i (N43) 3-door
Installation of the passenger power window switch is described
separately from removal.

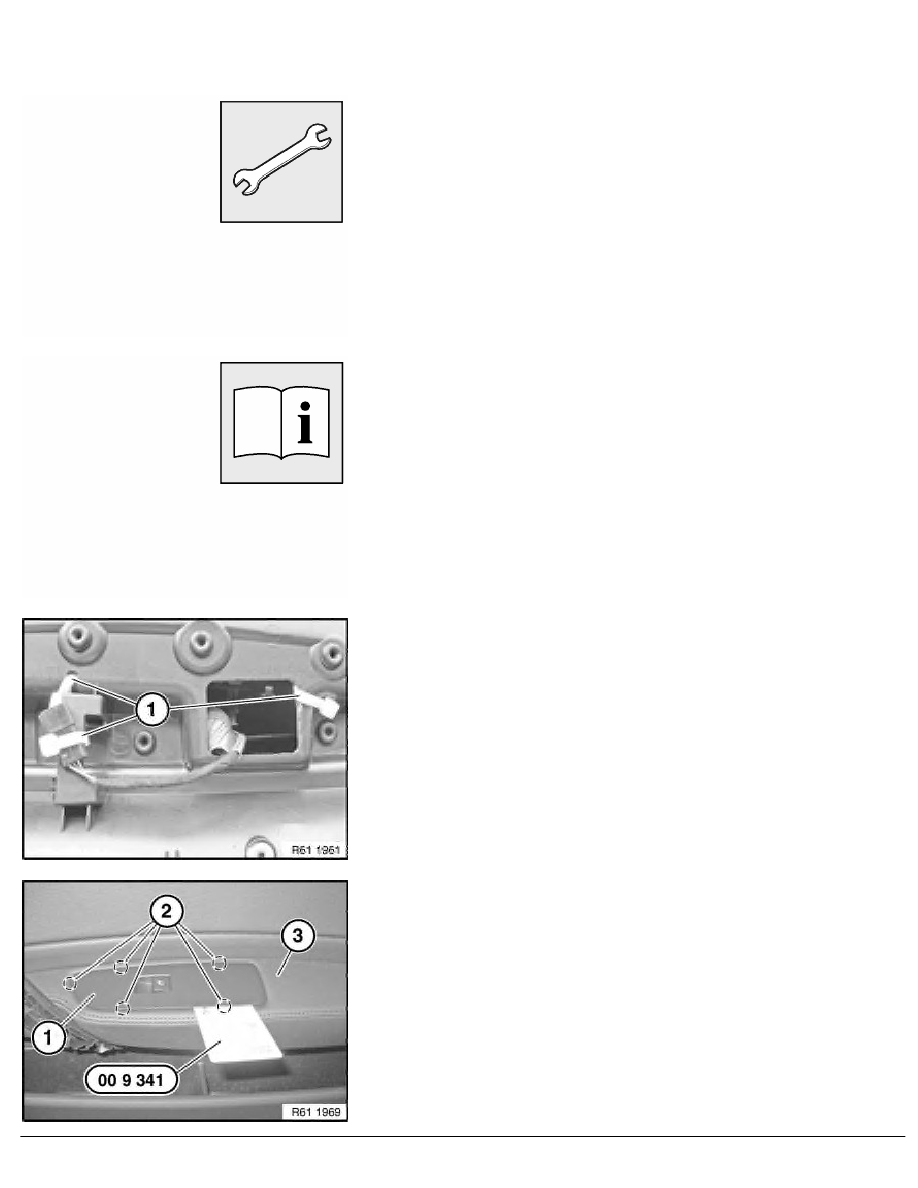

Installing front passenger power window switch with retaining pins
in armrest without bores:

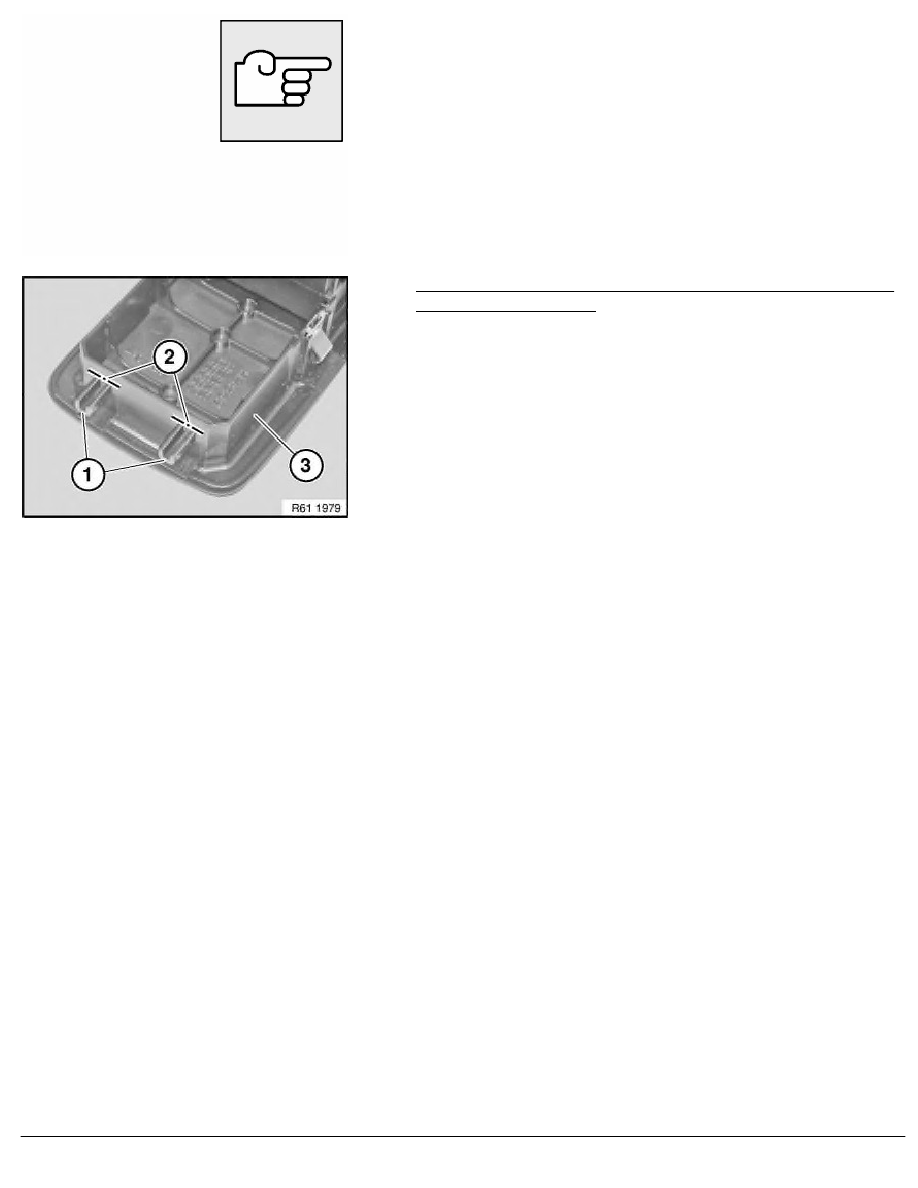

Cut retaining pins (1) with a suitable tool at dashed lines (2)
completely from front passenger power window switch (3).
Close associated plug connection.
Insert front passenger power window switch (3) in armrest.
Installation:
Make sure front power window switch (3) is correctly seated and
engaged in armrest.
RA Replacing front passenger power window switch (up to 08/2007)
