1 Series E81 116i (N43) 3-door
Installation:

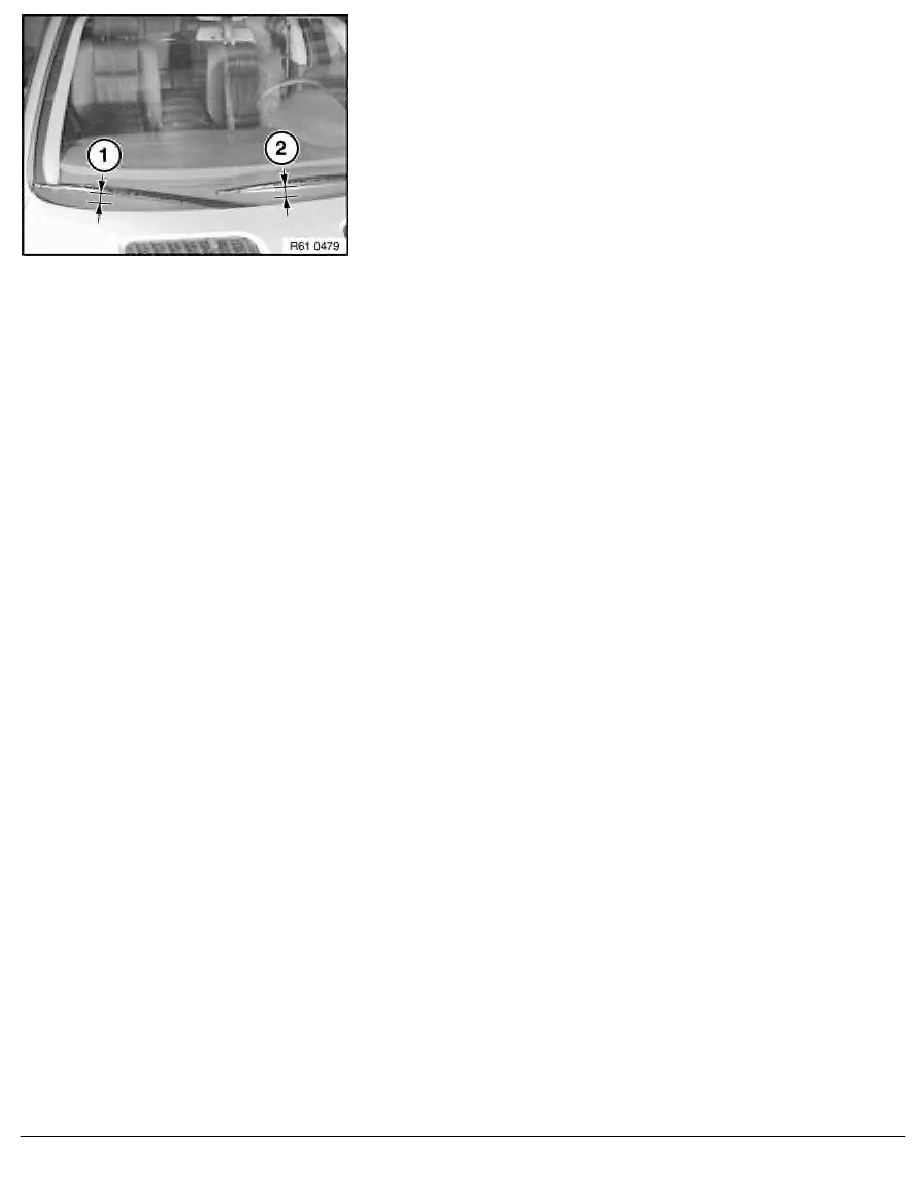

Adjust position of wiper arm in question in rest position (measured
between wiper lip and top edge of cowl panel cover).
Then tighten down wiper arm and check position of relevant wiper
arm again.
1.
47
±
3 mm
2.
54
±
3 mm

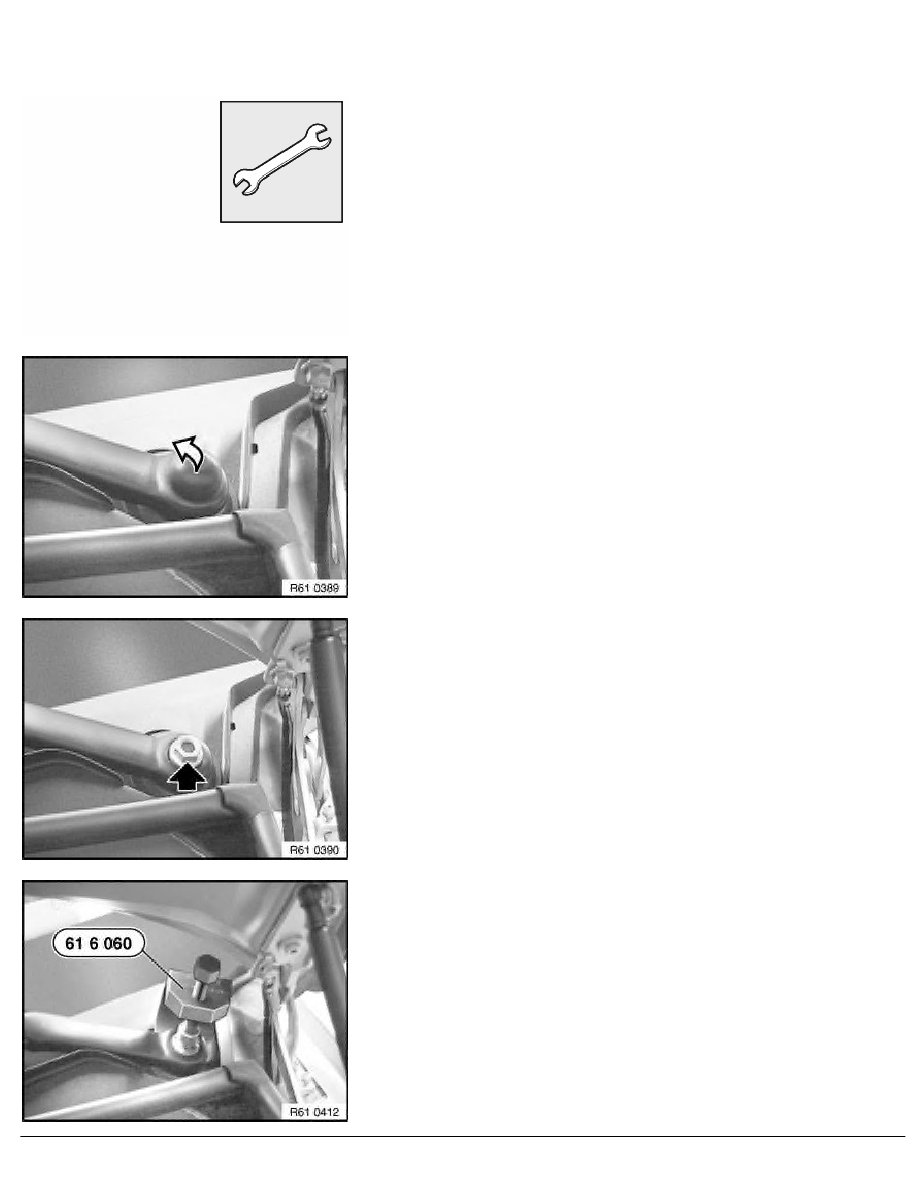

RA Removing and installing/replacing both windscreen wiper arms
