1 Series E81 118d (N47) 3-door
61 31 052
Removing and installing (or replacing version
without CCC) centre console switch cluster
(after 03/2007)
Necessary preliminary tasks:
•
Remove middle trim for instrument panel

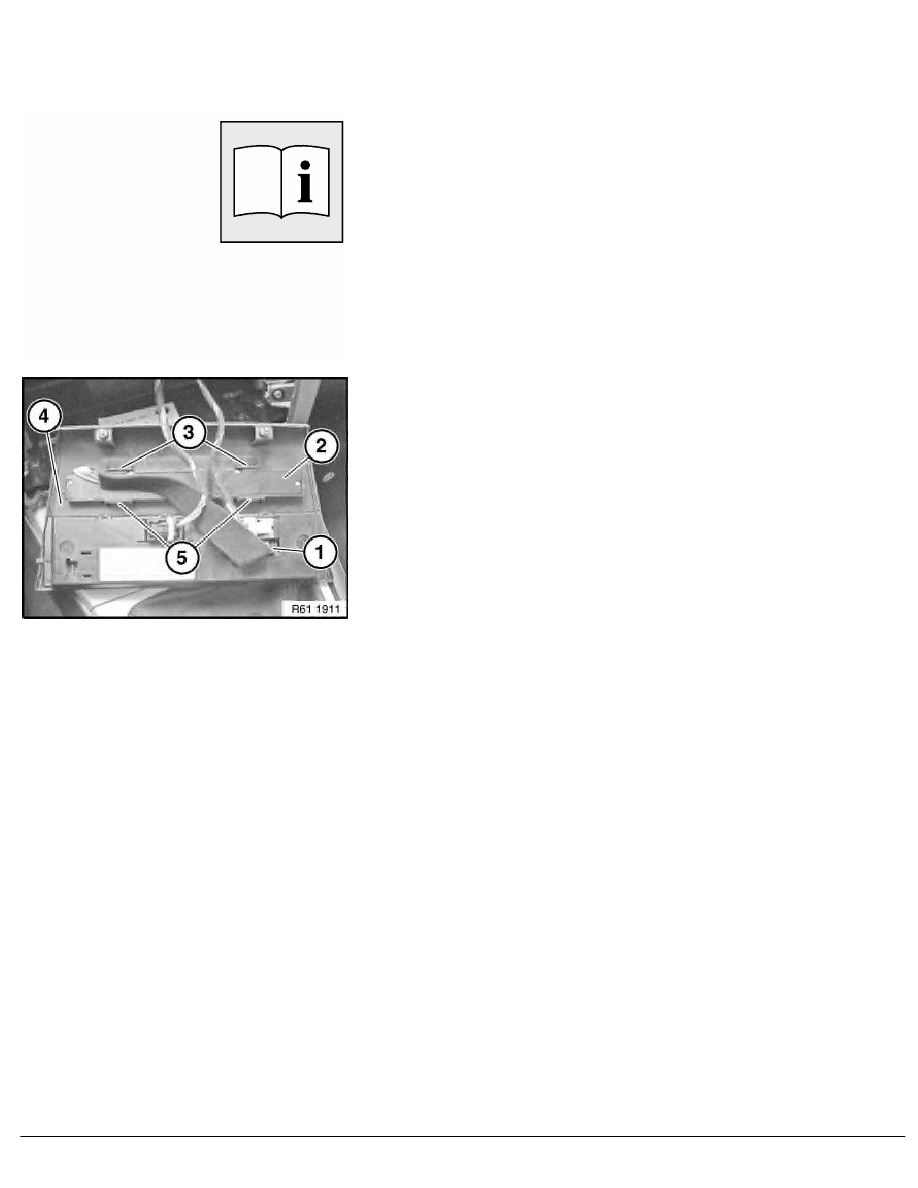

Disconnect plug connection of ribbon cable (1).
Unclip centre console switch cluster (2) from lower retaining
tabs (3) and upper retaining tabs (5) and remove from
middle instrument panel trim (4).
Installation:
Make sure centre console switch cluster (2) engages correctly in
upper retaining tabs (5) and lower retaining tabs (3).
Make sure wiring harnesses are correctly routed.
RA Removing and installing (or replacing version without CCC) centre console switch
