1 Series E81 118d (N47) 3-door
61 13 ...
DME master relay connector

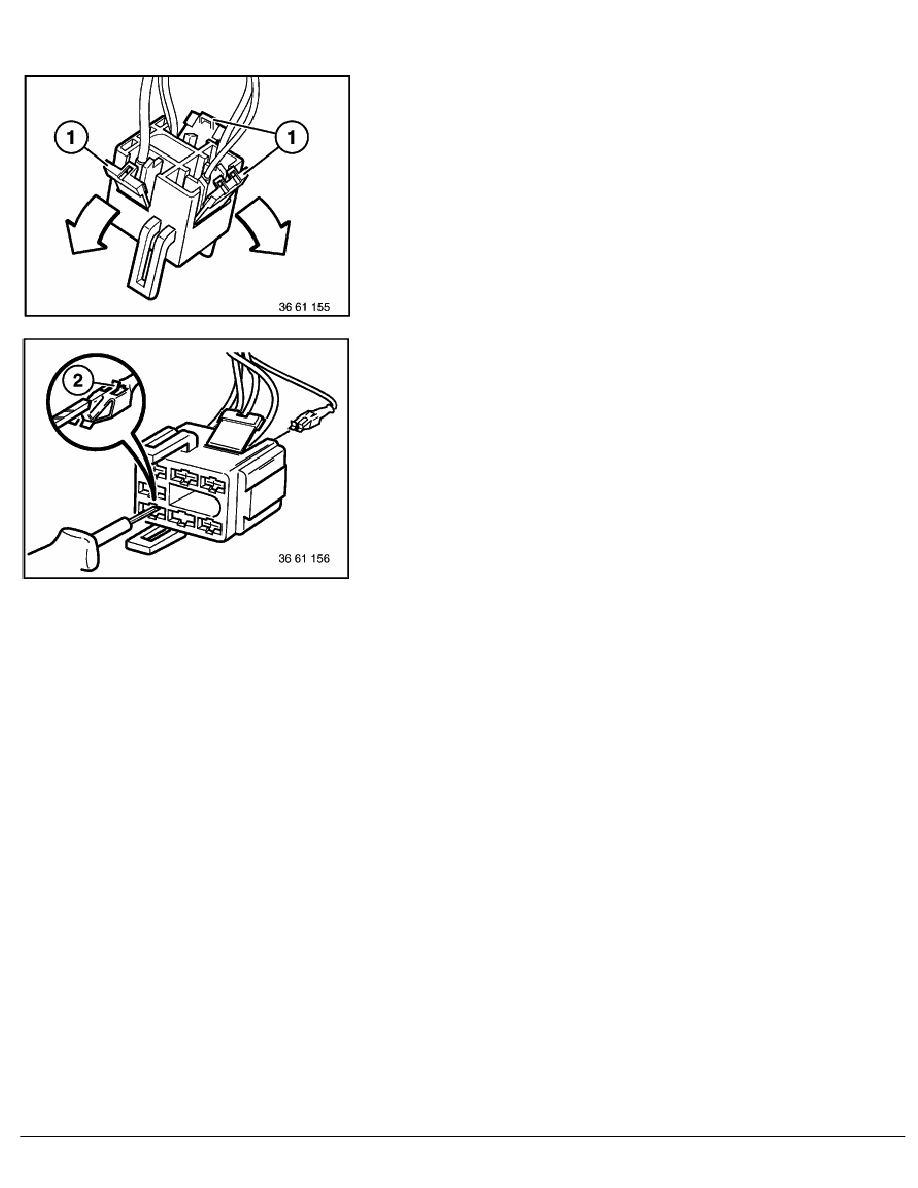

Unlock locking flap (1) of corresponding cable.
With special tool 61 1 136 or 61 1 137 (ejector), press back
arrester hook (2) of appropriate contact and pull out cable.
RA DME master relay connector
