1 Series E81 118i (N46T) 3-door

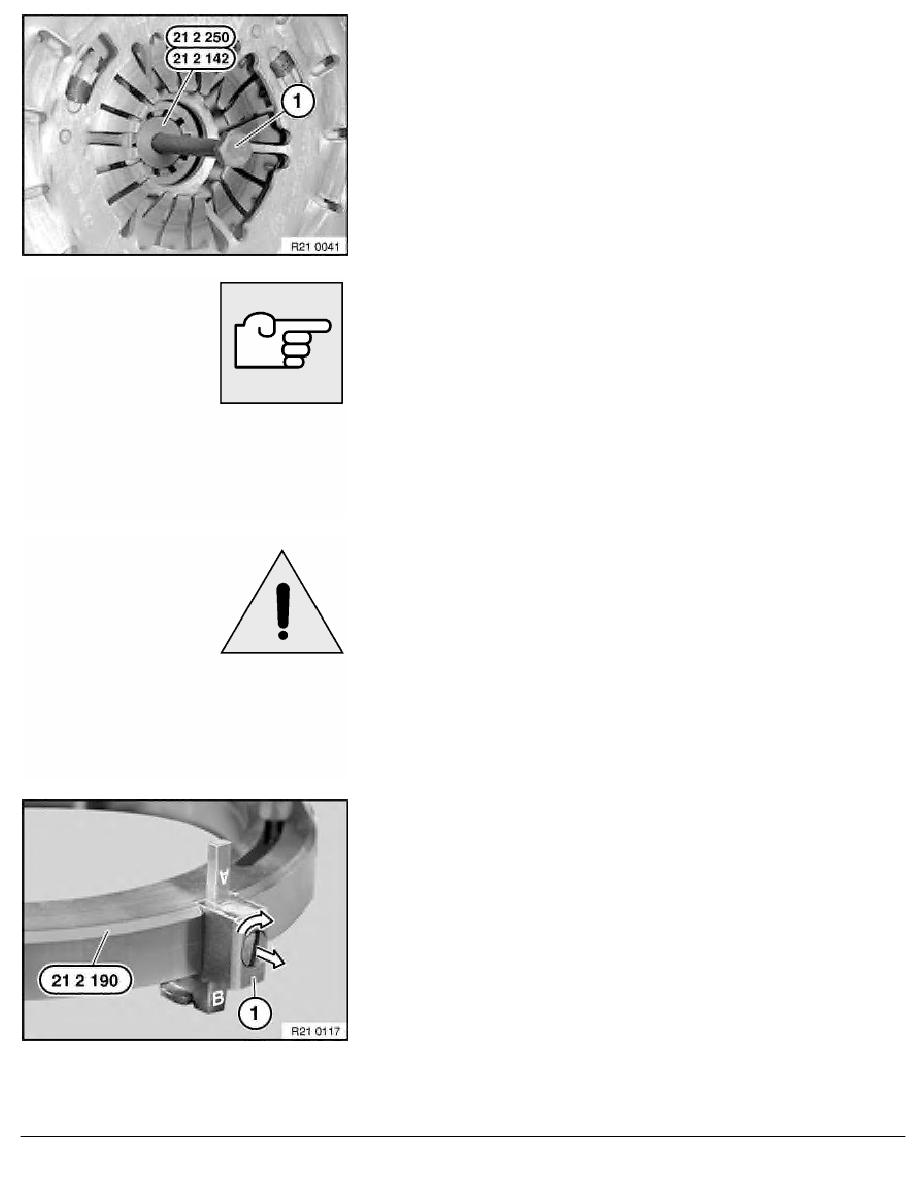

Withdraw special tool 21 2 250 from clutch plate with aid of
accompanying screw (1).
Installing removed SAC clutch with new clutch plate:
Important!
Before installing an SAC clutch which has been in service with
a new clutch plate: always reset adjustment ring in new
position.
Note:
Before installing special tool 21 2 190 in SAC clutch: Adjust
locking pin to "A" or "B".
A
SAC clutch with plastic adjustment ring
B
SAC clutch with steel adjustment ring
Preliminary setting:
Pull out handle (1) and through 180
°
into position "A" or "B".
RA Removing and installing/replacing clutch (SAC 228 N45/N46/N45T/N43/N46T)
