1 Series E81 118i (N46T) 3-door

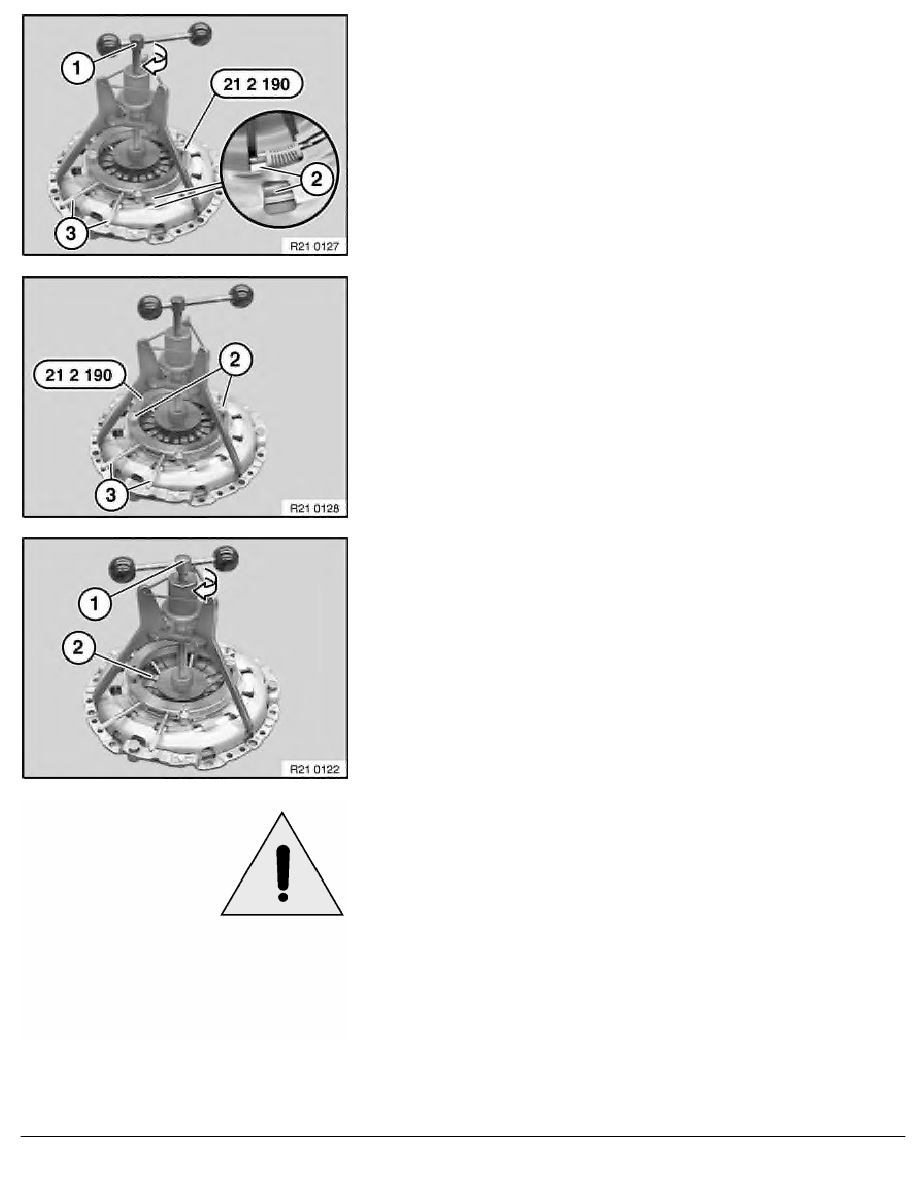

Screw in spindle (1) until adjustment ring of SAC clutch (2) can
be turned with special tool 21 2 190 at handles (3).
Press special tool 21 2 190 together at handles (3) as far as it
will go and grip firmly.
At same time tighten down knurled screws (2).
Adjustment ring of SAC clutch is now secured in new position.
Screw in spindle (1) until diaphragm spring (2) is tensioned up to
stop.
Important!
Handle clutch plate with care. Do not touch surfaces of friction
linings.
Install clutch plate in correct position.
Pay attention to text "engine end" / "transmission side".
RA Removing and installing/replacing clutch (SAC 228 N45/N46/N45T/N43/N46T)
