1 Series E81 118i (N46T) 3-door
41 34 041
Replacing complete tail panel
Read contents of Body, General.
Use only approved spot-welding apparatus for repairs.
For stripping and rigging operations, refer to texts on KSD
CD (FR number 41 34 041).
Remove or cover those vehicle components in the repair area
which are susceptible to heat or dust.

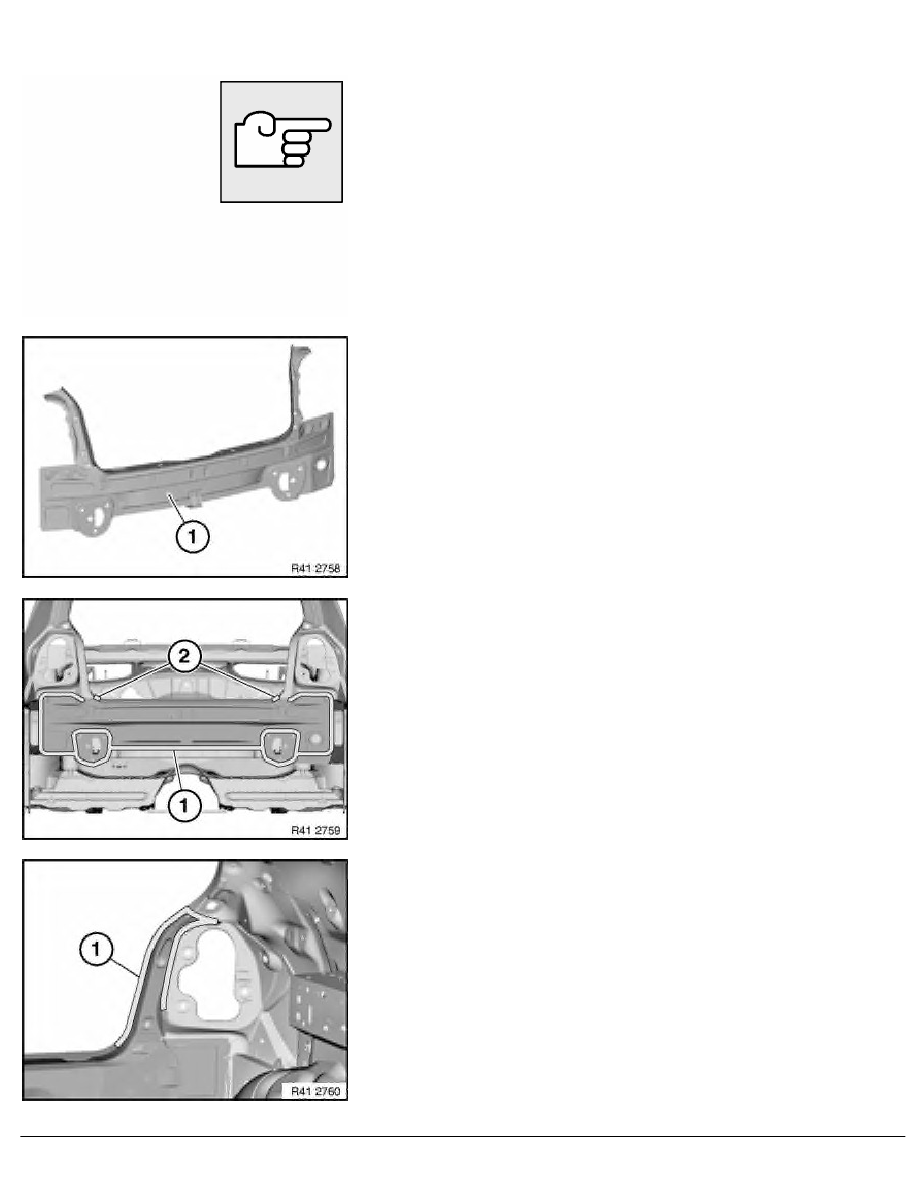

Following new body parts are required (refer to Electronic Parts
Catalogue ETK):
-
(1) Rear trim
Open weld joints in area (1).
Open brazed joints in areas (2).
Open weld joints in area (1).
RA Replacing complete tail panel
BMW AG - TIS
18.01.2013 23:29
Issue status (12/2007) Valid only until next DVD is issued
