1 Series E81 118i (N46T) 3-door

Page 2
background image

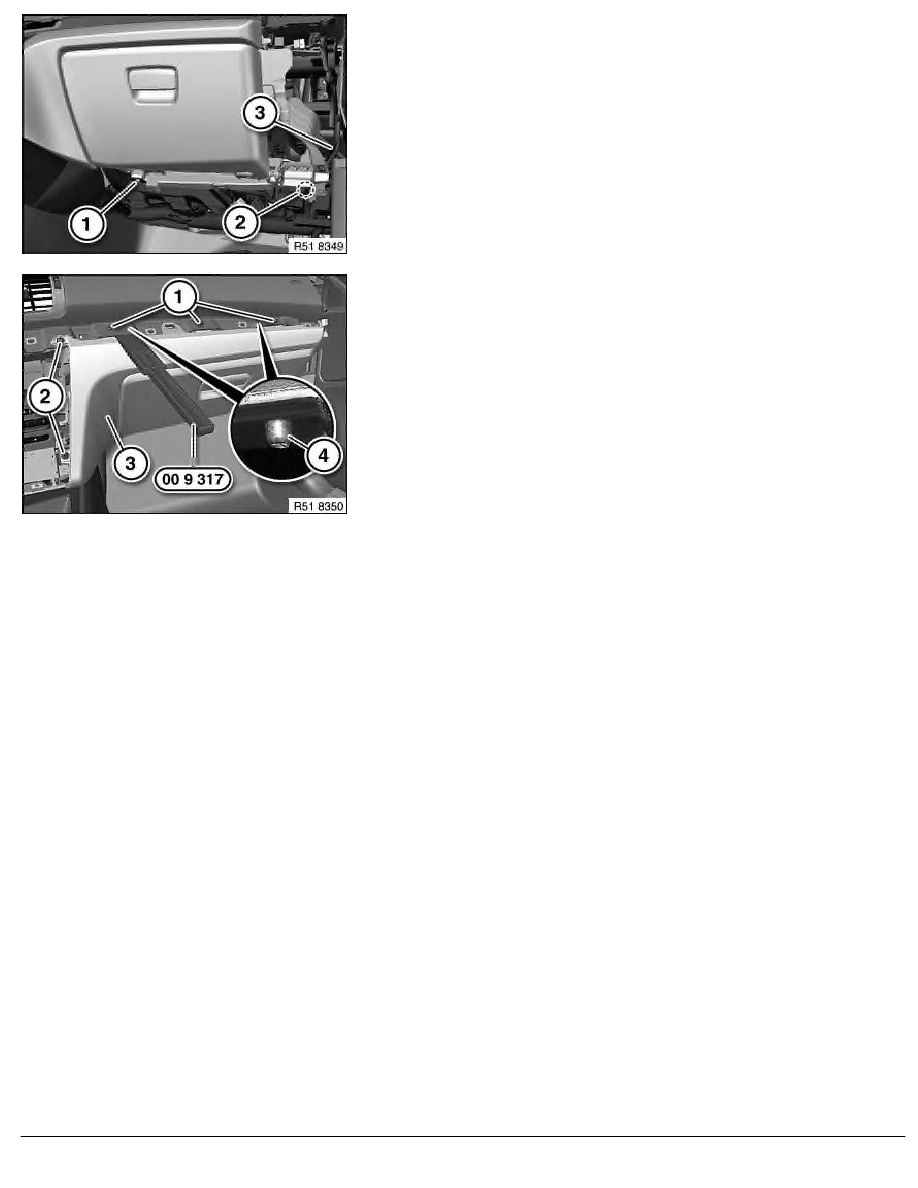

Release screw (1).

Release screw (2) on holder (3).

Release screws (1 and 2).

Raise guides (4) of instrument panel with special tool  00 9 317
and pull out glovebox (3) completely.

If necessary, feed cable out of glovebox (3).

RA  Removing and installing right glovebox with housing (from 03/2007)

BMW AG - TIS

19.01.2013  00:02

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 2 -
