1 Series E81 118i (N46T) 3-door
51 16 040
Removing and installing/replacing housing on
left or right door mirror
Necessary preliminary tasks:
•
Remove mirror glass
Important!
Risk of damage!
Secure housing (2) against falling off.
Note:

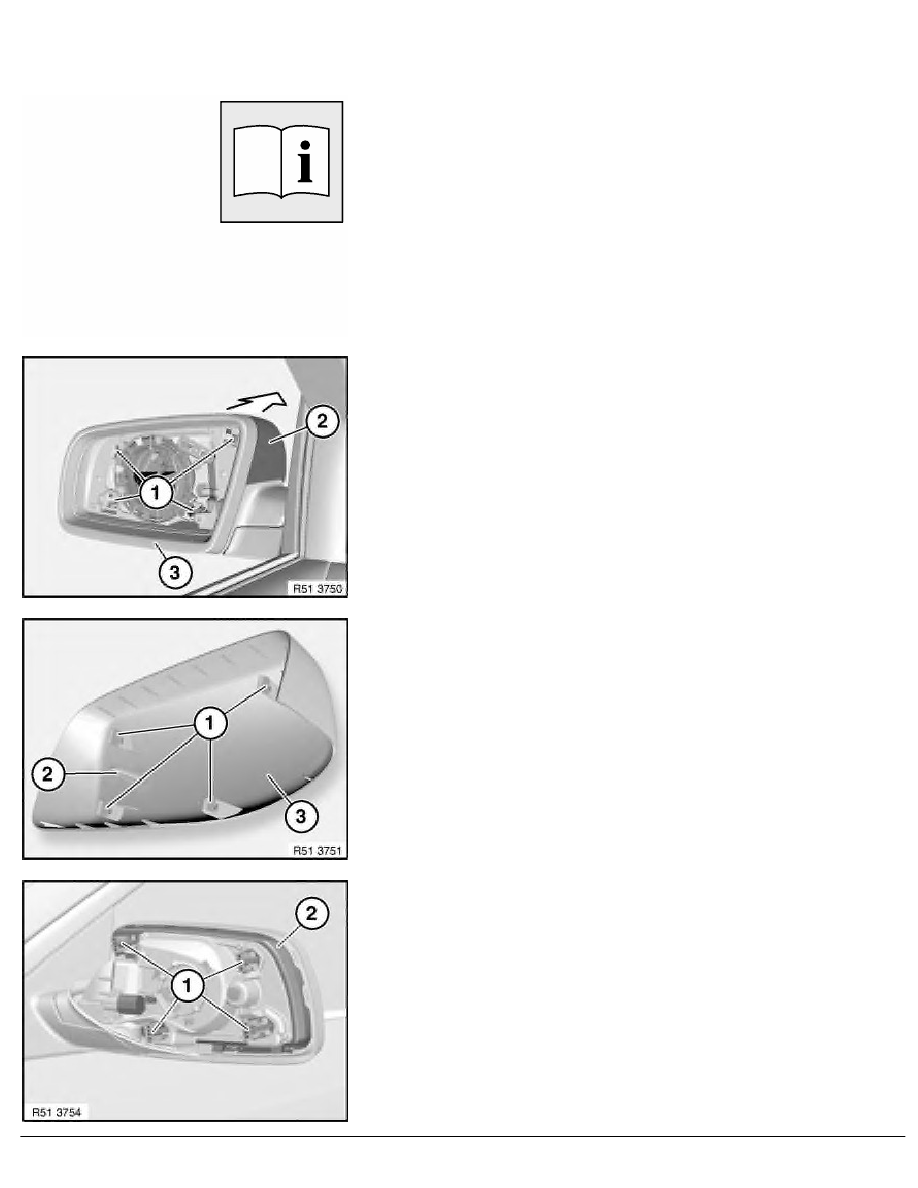

Housing (2) is secured without play by four multitooth catches (1)
on retaining ring (3).
Unlock multitooth catches (1) with a screwdriver.
Unclip housing (2) forwards from retaining ring (3) and remove.
Installation:
Multitooth catches (1) and guide (2) on housing (3) must not be
damaged.
Installation:
Locators (1) on retaining plate (2) must not be damaged.
RA Removing and installing/replacing housing on left or right door mirror
