Removing and Installing Release Mechanism | Front Seat Repair Guide

Page 2
background image

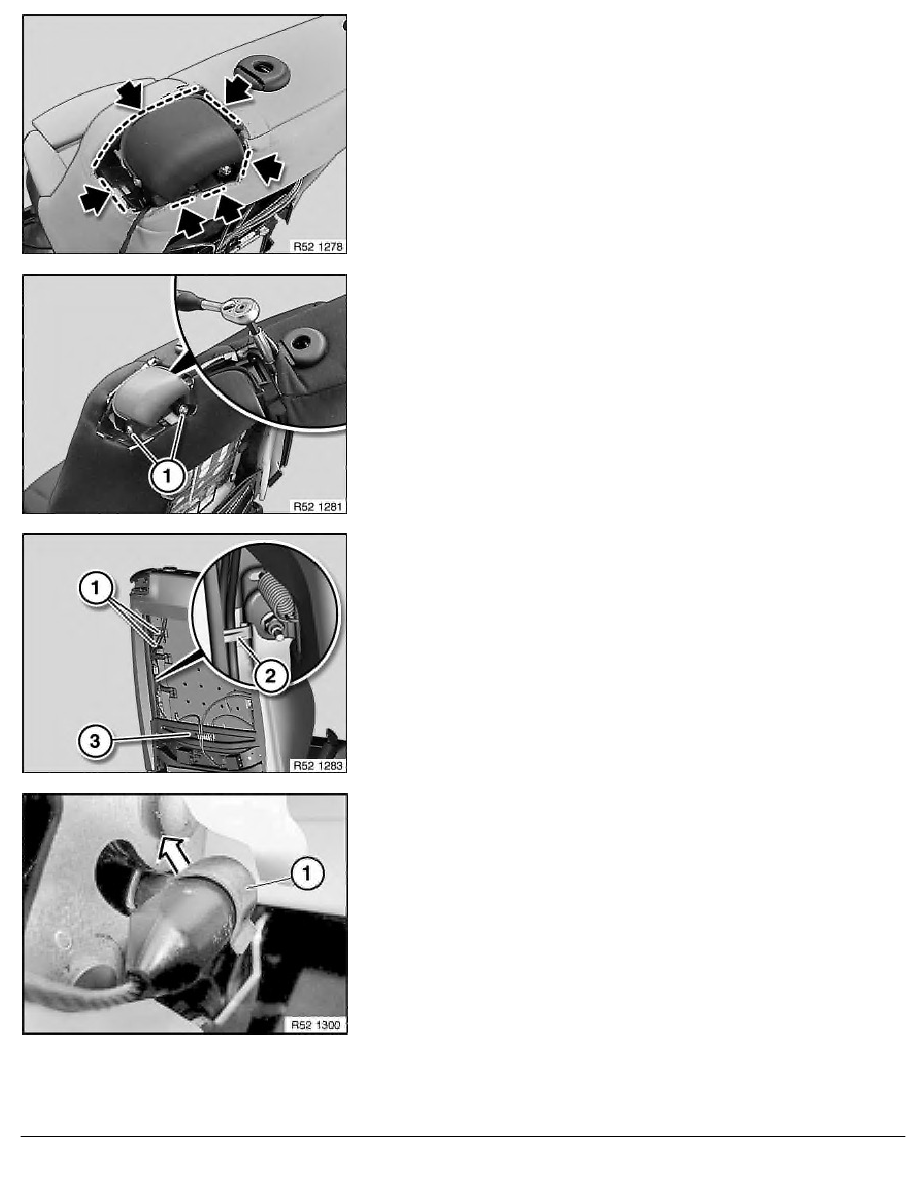

Detach backrest cover in marked area.

Important!

Danger of mixing up screws.

Release screws (1).

Release screw between backrest cover and release mechanism.

Feed Bowden cables (1) out of cable holder (2).

Unclip cable holder (3) from backrest frame.

Unhook seat covers on left and right.

Lever out retaining clip (1) on left and right.

Installation:

Replace retaining clip (1).

Make sure retaining clip (1) is correctly seated.

RA  Removing and installing/replacing release mechanism on left or right front seat

BMW AG - TIS

19.01.2013  01:04

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 2 -
