1 Series E81 118i (N46T) 3-door
52 13 041
Removing and installing / replacing inner
cover on left or right front seat backrest
(normal/ manual)
Necessary preliminary tasks:
•
Remove front seat

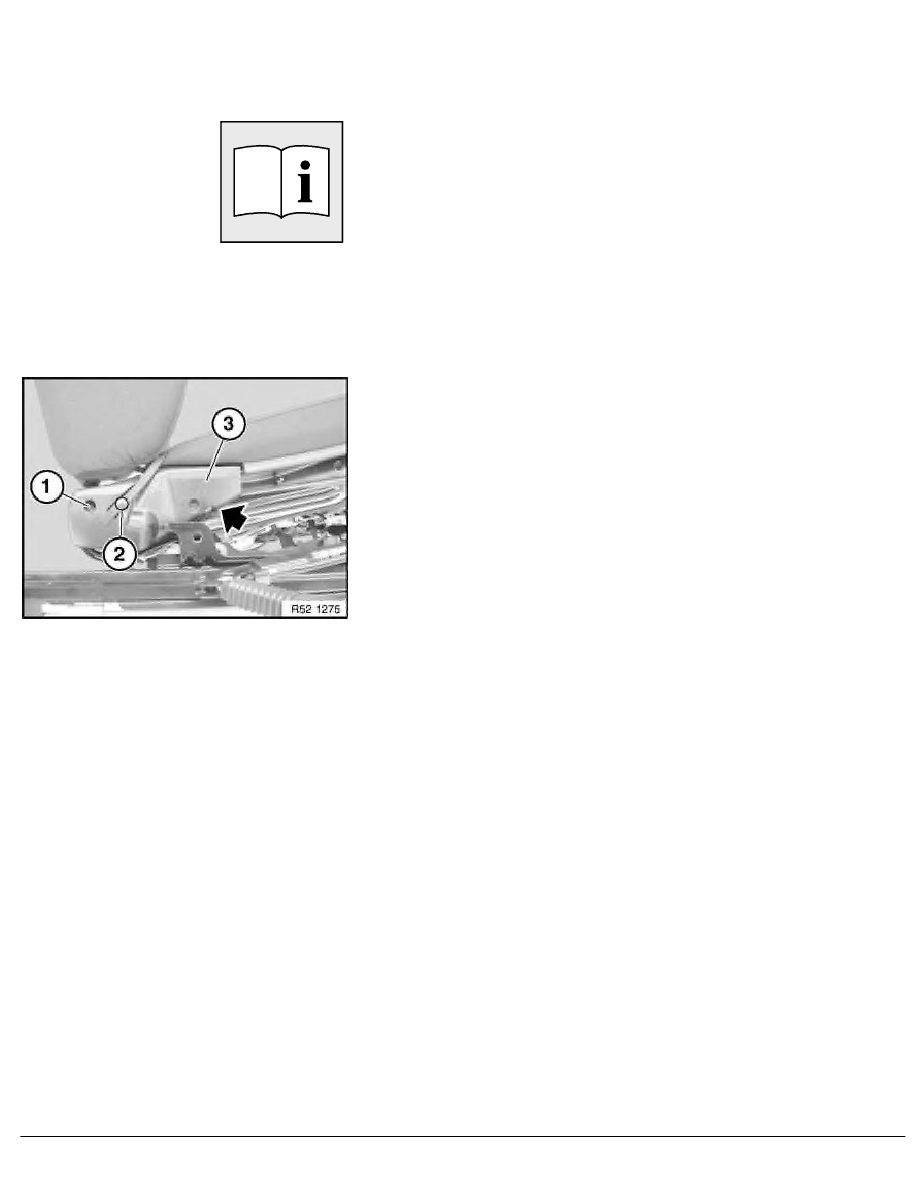

Release screw (1).
Lever clip (2) out of seat cover on left and right.
Installation:
If necessary, replace faulty clip.
Remove trim (3) from inside of seat.
RA Removing and installing / replacing inner cover on left or right front seat back
