1 Series 123d (N47S) Coupe
61 31 229
Removing and installing/replacing both
switches on sport steering wheel
Necessary preliminary tasks:
•
Remove airbag unit
Note:

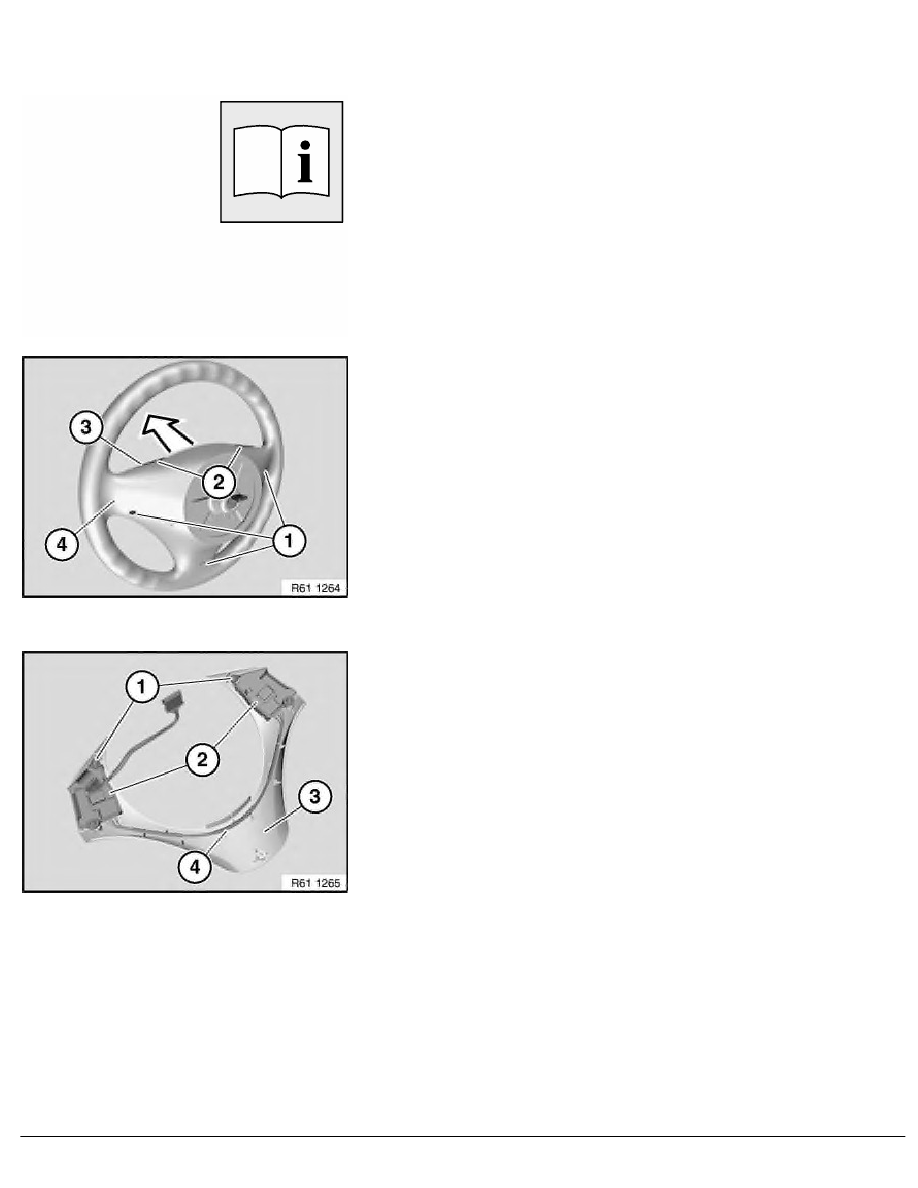

Illustrations show multifunction steering wheel (4) removed.
Release screws (1).
Detach decorative trim (3) in direction of arrow from holders (2).
Disconnect associated plug connection and remove complete
decorative trim (3).
Installation:
Make sure electrical leads are correctly routed.
Feed wiring harness (4) out of associated holders.
Release screws (1) and remove both multifunction steering wheel
switches (2) from decorative trim (3).
Installation:
Make sure there is a uniform gap between both multifunction
steering wheel switches (2) and decorative trim (3).
RA Removing and installing/replacing both switches on sport steering wheel
BMW AG - TIS
17.01.2013 02:21
Issue status (12/2007) Valid only until next DVD is issued
